Rear Gate Garnish

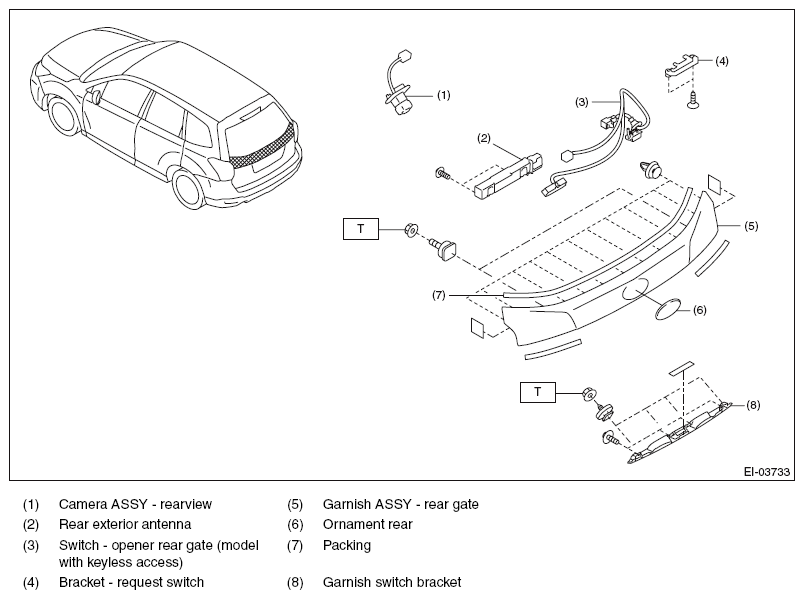

Fig 1: Identifying Rear Gate Garnish Components
G09484808Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 4.5 (0.46, 3.3)
