Rear Bumper

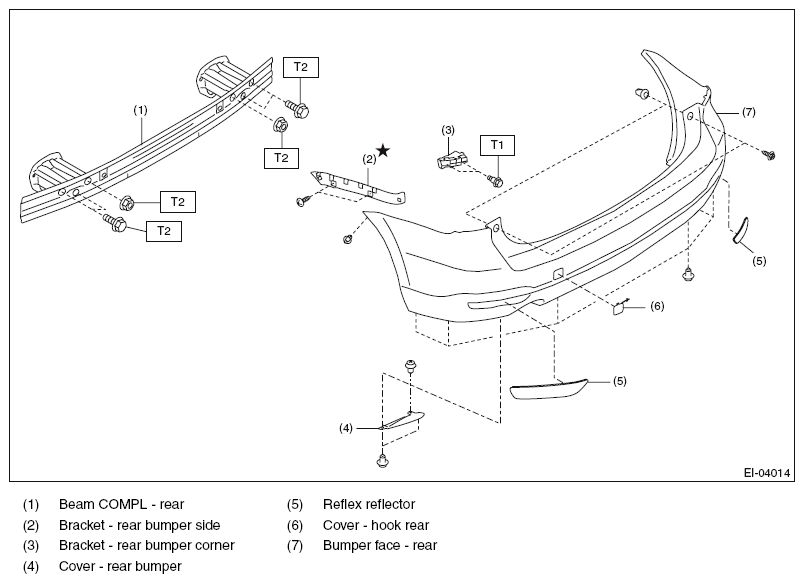

Fig 1: Identifying Rear Bumper Components

G09484790

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.76, 5.5)

T2: 70 (7.14, 51.6)
