Front Hood Grille

For exploded view of the front hood grille, refer to "Front hood" of "EXTERIOR BODY PANELS" section. < Ref. to FRONT HOOD , COMPONENT, General Description. >

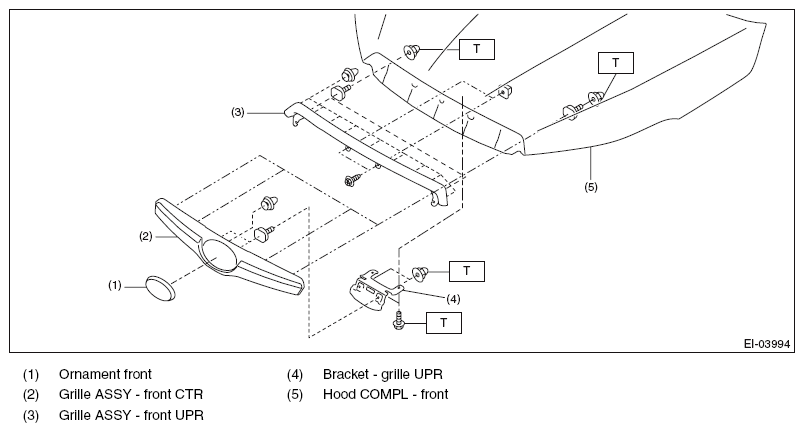

Fig 1: Identifying Front Hood Grille Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 4.5 (0.46, 3.3)
