Torque Converter Assembly: Removal

  1. Remove the transmission assembly from the vehicle. < Ref. to REMOVAL , Automatic Transmission Assembly. >
  2. Pull out the torque converter assembly horizontally.
    CAUTION: Do not scratch the inside of engaging parts.

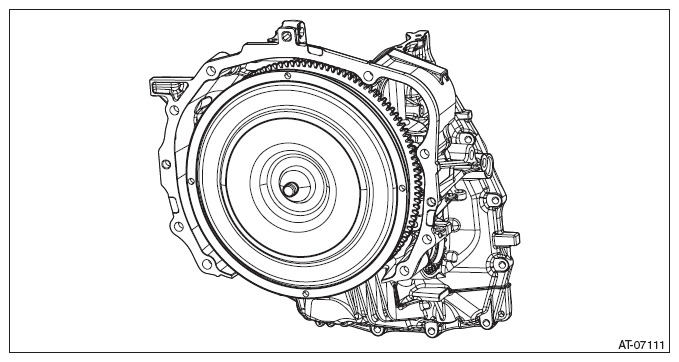

    Fig 1: Identifying Torque Converter Assembly
    G09481554Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the O-ring from the input shaft.
