General Description
>>
Components With Torque Specifications
>>
Oil Pump ASSY
Oil Pump ASSY

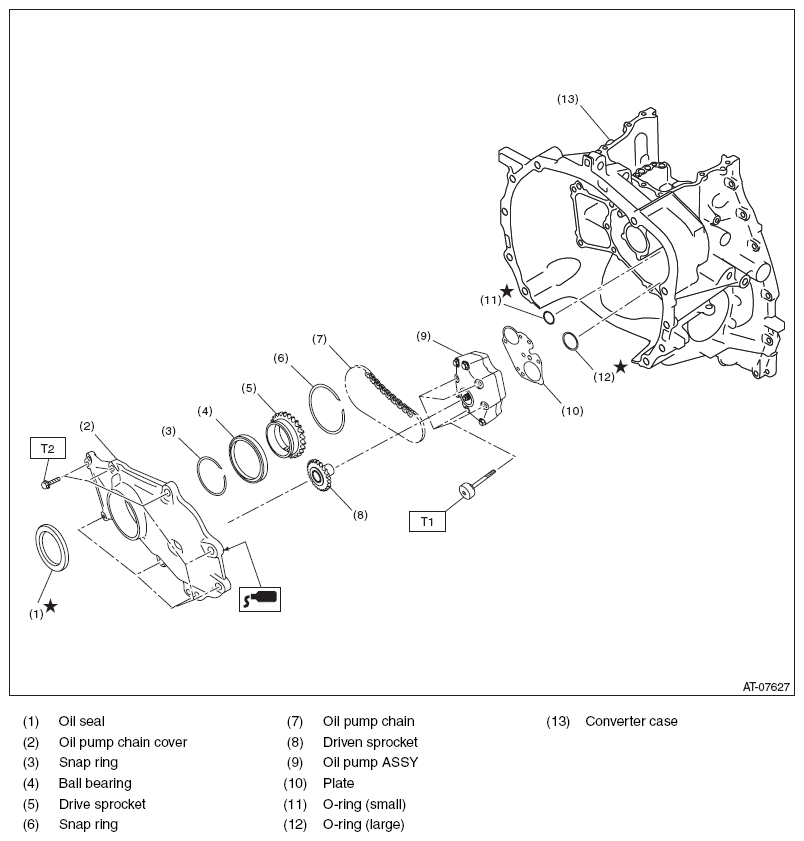

Fig 1: Exploded View Of Oil Pump Assembly
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 8.5 (0.9, 6.3)
T2: 21 (2.1, 15.5)
Courtesy of SUBARU OF AMERICA, INC.
