Home >> Subaru >> 2015 >> Forester 2.0XT Premium >> Repair and Diagnosis >> Steering >> Power Steering >> Power Assisted System Power Steering Diagnostics >> Control Module I/O Signal >> Wiring Diagram

Control Module I/O Signal: Wiring Diagram

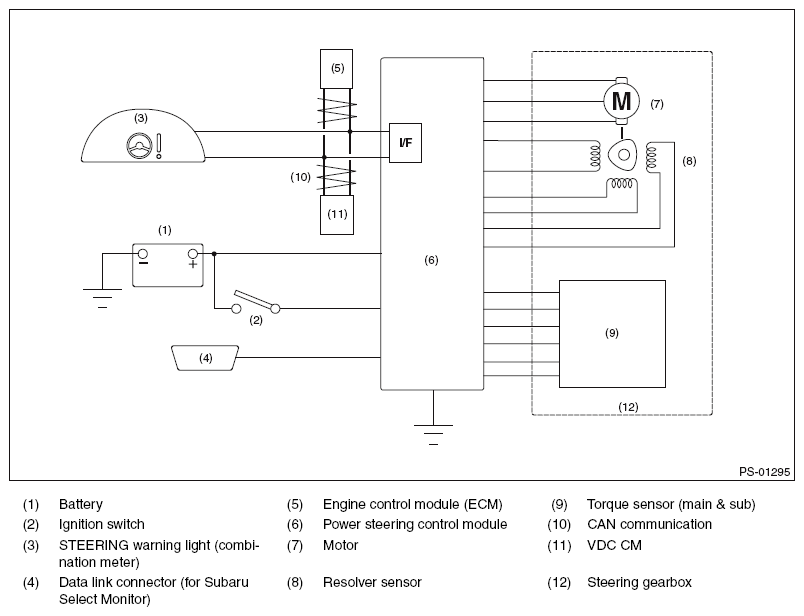

Fig 1: Power Assisted System - Wiring Diagram

G09483704

Courtesy of SUBARU OF AMERICA, INC.
