Console Box

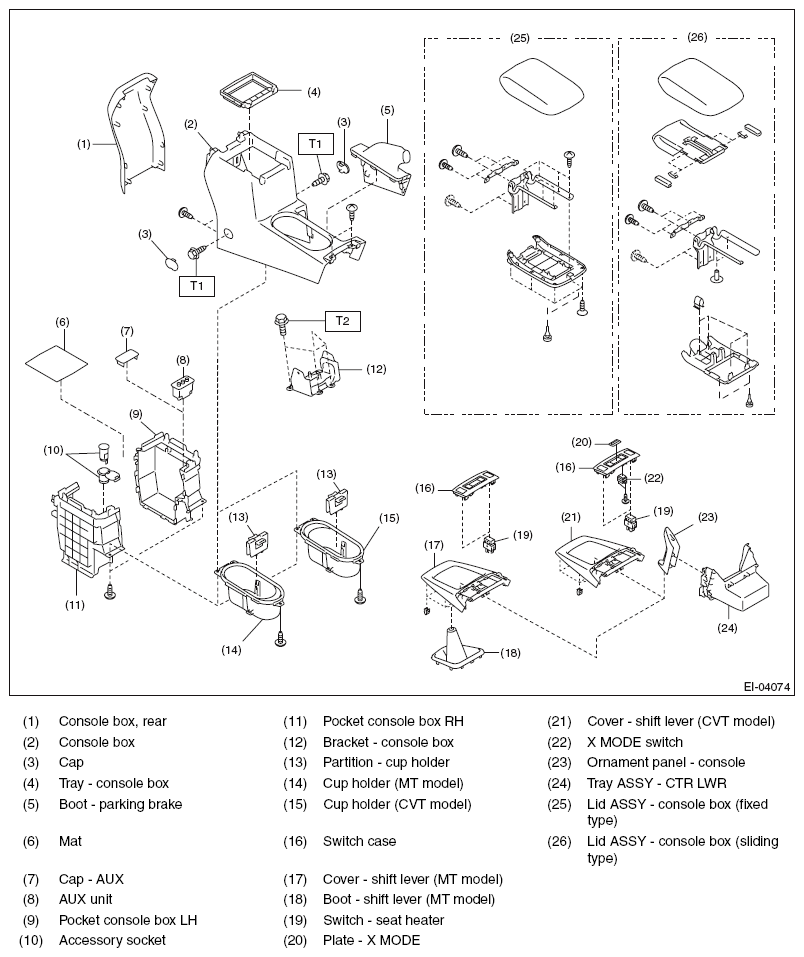

Fig 1: Identifying Console Box Components

G09484797

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6.5 (0.66, 4.8)

T2: 18 (1.84, 13.3)
