Console Box: Removal

Disconnect the ground cable from battery.
NOTE:
- On CVT models, shift the select lever into "N" before disconnecting the battery ground cable.
- For the power seat, move the seat to the front-most position before removing the battery ground terminal.
Release the claws, and then remove the boot - hand brake.

Fig 1: Identifying Hand Brake Boot
Courtesy of SUBARU OF AMERICA, INC.
Release the clips, and remove the ornament panel - console.

Fig 2: Removing Console Ornament Panel
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Removal is easier if you grab the arrow sections from right and left and pull them at the same time.
Remove the cover - shift lever.
1. Remove the shift knob. (MT model)
2. Release the clips and claws, then pull up the cover - shift lever.

  Fig 3: Removing Shift Knob (MT Model)
  Courtesy of SUBARU OF AMERICA, INC.
Release the claws, and remove the tray assembly - CTR LWR.

Fig 4: Identifying Tray Assembly Claws
Courtesy of SUBARU OF AMERICA, INC.
Remove the console box assembly.
1. Move the seat forward, and remove the bolts after detaching the left and right caps.
2. Remove the screws and clips, disconnect the harness connector and remove the console box assembly.

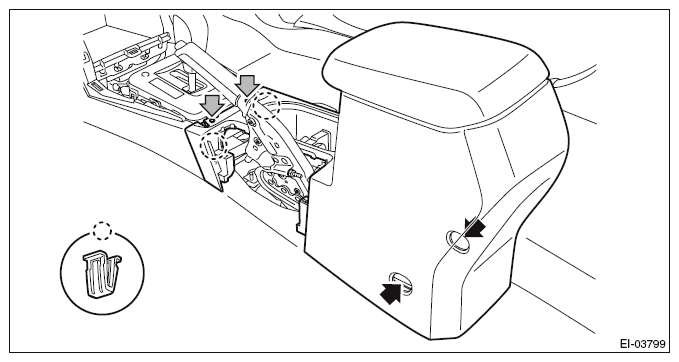

  Fig 5: Identifying Console Box Assembly Screws
  Courtesy of SUBARU OF AMERICA, INC.
Remove the left and right panel center LWR.
1. Remove the screws and clips.
2. Release the claws, and then pull the panel center LWR to remove.

  Fig 6: Removing Left And Right Panel Center Clips
  Courtesy of SUBARU OF AMERICA, INC.

  Fig 7: Pulling Panel Center LWR
  Courtesy of SUBARU OF AMERICA, INC.
