Front Shock Absorber: Inspection

Inspection of shock absorber assembly FR LH
1. Operation inspection of shock absorber assembly FR LH
  1. Press the shock absorber assembly FR LH to the lowest position while holding it up and let it extend on its own. Repeat the process four times or more.
  2. Inspect the shock absorber assembly FR LH.
    Criteria: When it is compressed at a certain speed, the heaviness of each stroke is consistent, and it does not make any abnormal movement or sound. Also, when it extends, it returns to its original length at a consistent speed without any abnormal sound.

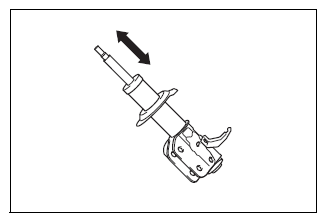

    Fig 1: Inspecting Shock Absorber Assembly FR LH
    Courtesy of SUBARU OF AMERICA, INC.
  NOTE: If defective, replace the shock absorber assembly FR LH with a new part.
