Front Shock Absorber: Disposal

Disposal of shock absorber assembly FR LH
1. Secure the shock absorber assembly FR LH in a vertical position.
2. Press down on the piston rod with hands by approximately 70mm {2.756in}.
3. Using a saw, etc., slowly make a hole in the section shown in the figure to purge the gas.

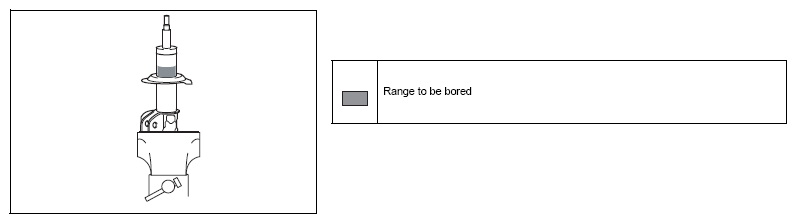

  Fig 1: Locating Shock Absorber Disposal Hole Area
  Courtesy of SUBARU OF AMERICA, INC.
  CAUTION:
  - Wear protective eye wear.
  - Since the gas pressure may spray metal chips, perform the procedure by covering the saw with a piece of cloth, etc.
  NOTE: Gas to be released is colorless, odorless, and harmless.
