Front Brake: Installation

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The following procedure is for LH side.
  • Service the LH side and the RH side using the same procedure.
  1. Installation of front disc
    1. When removing/installing the front disc
      1. Aligning the mark which you put at the time of removal, install the front disc to the axle hub.
    2. When replacing the front disc
      1. Check the disc runout (Refer to INSPECTION  ) and install the front disc to the axle hub.
    3. Temporarily tighten the hub nut to secure the front disc to the axle hub.
  2. Installation of front disc brake cylinder mounting LH
    1. Install the carriers with new 2 bolts.

      Standard value: T=80N.m {816kgf.cm} {59.0ft.lbf}

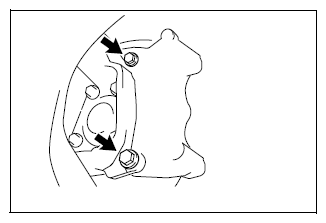

      Fig 1: Identifying Front Disc Brake Cylinder Mounting LH Bolts
      G08557078Courtesy of SUBARU OF AMERICA, INC.
  3. Installation of boots (pins)
    1. Apply rubber grease all around the engaging parts of new 2 boots (pins).

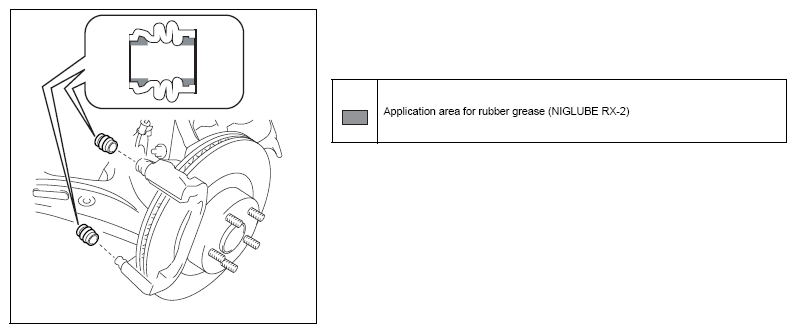

      Fig 2: Identifying Rubber Grease Applying Areas On Boot
      G08557079Courtesy of SUBARU OF AMERICA, INC.
      NOTE: Apply 1.5±2.0g of rubber grease (NIGLUBE RX-2) per 1 front disc brake bushing dust boot.
    2. Install 2 front disc brake bushing dust boots to the front disc brake cylinder mounting LH.
  4. Installation of bushing
    1. Apply a thin coat of rubber grease all around the contacting surface of the new bushing and the front disc brake cylinder slide pin No. 2.

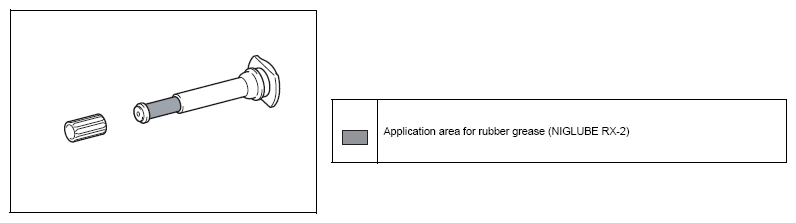

      Fig 3: Identifying Rubber Grease Applying Areas On Contact Surface Of Bushing And Front Disc Brake Cylinder Slide Pin No. 2
      G08557080Courtesy of SUBARU OF AMERICA, INC.
    2. Install the bushing to the front disc brake cylinder slide pin No. 2.
  5. Installation of front disc brake cylinder slide pin No. 2

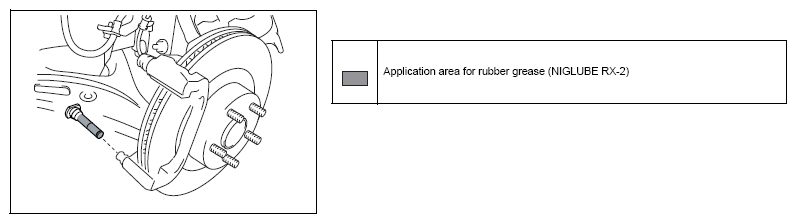

    Fig 4: Identifying Rubber Grease Applying Areas On Front Disc Brake Cylinder Slide Pin No. 2
    G08557081Courtesy of SUBARU OF AMERICA, INC.
    1. Apply a thin coat of rubber grease all around the engaging part and the sliding part of the front disc brake cylinder slide pin No. 2.
    2. Install the front disc brake cylinder slide pin No. 2 to the carrier.
  6. Installation of front disc brake cylinder slide pin

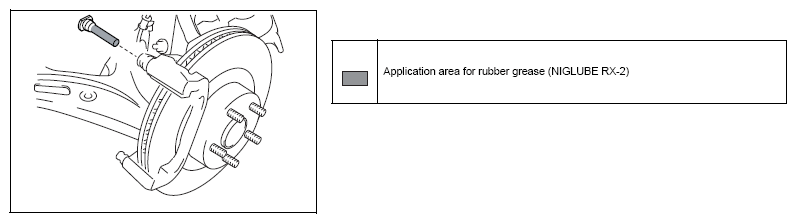

    Fig 5: Identifying Rubber Grease Applying Areas On Front Disc Brake Cylinder Slide Pin
    G08557082Courtesy of SUBARU OF AMERICA, INC.
    1. Apply a thin coat of rubber grease all around the engaging part and the sliding part of the front disc brake cylinder slide pin.
    2. Install the front disc brake cylinder slide pin to the carrier.
  7. Installation of spring (L)
    1. Apply a thin coat of MP grease to the part where the disc brake pad kit FR for the spring (L) contacts.
    2. Install the spring (L) to the front disc brake cylinder mounting LH.

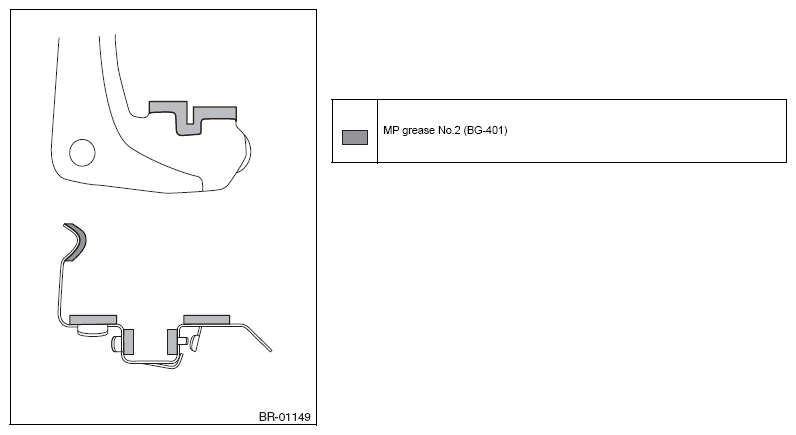

      Fig 6: Identifying MP Grease Applying Areas On Contact Surface Of Disc Brake Pad Kit FR And Spring (L)
      G08557083Courtesy of SUBARU OF AMERICA, INC.
  8. Installation of spring (pad)
    NOTE: Service the spring (pad) in the same procedures for the spring (L).
  9. Removal of front disc brake pad (15 inch type)
    1. Apply disc brake grease II to both sides of the shim.

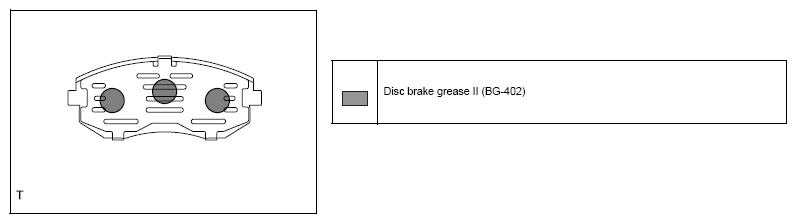

      Fig 7: Identifying Disc Brake Grease II Applying Areas On Shim
      G08557084Courtesy of SUBARU OF AMERICA, INC.
    2. Install the front disc brake pad to the cover (shim).
    3. Install the disc brake pad, the cover (shim) and the shim to the carrier.

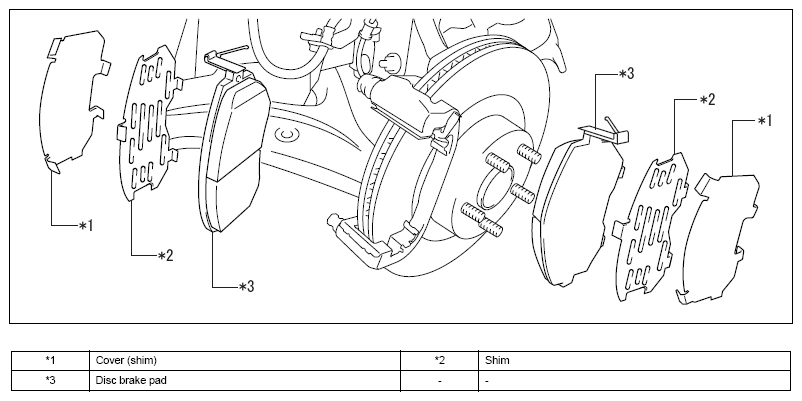

      Fig 8: Identifying Disc Brake Pad, Shim And Cover (Shim)
      G08557085Courtesy of SUBARU OF AMERICA, INC.
  10. Installation of front disc brake pad (16 inch type)
    1. Install the disc brake pad to the carrier.

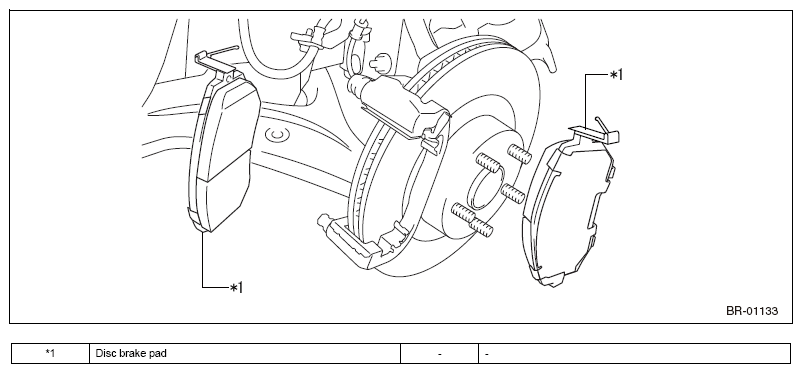

      Fig 9: Identifying Disc Brake Pads
      G08557086Courtesy of SUBARU OF AMERICA, INC.
  11. Installation of front disc brake cylinder ASSY LH
    1. Install the front disc brake cylinder ASSY LH to the carrier with 2 bolts.

      Standard value: T=26N.m {270kgf.cm} {19.2ft.lbf}

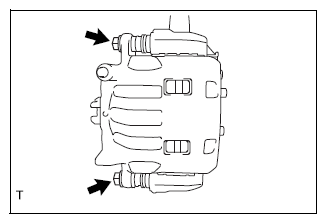

      Fig 10: Identifying Front Disc Brake Cylinder Assembly LH Bolts
      G08557087Courtesy of SUBARU OF AMERICA, INC.
  12. Connection of front flexible hose No. 1
    1. Using a new union bolt, connect the front flexible hose No. 1 to the disc brake cylinder ASSY via 2 new gaskets.

      Standard value: T=18N.m {184kgf.cm} {13.3ft.lbf}

  13. Brake fluid refill (Refer to BRAKE FLUID )
  14. Air bleeding of brake system (Refer to AIR BLEEDING )
  15. Brake fluid leak check
  16. Brake fluid level check (Refer to ON-VEHICLE INSPECTION )
  17. Installation of front tire

    Standard value: T=120N.m {1224kgf.cm} {88.5ft.lbf}
