Unit Inspection
WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

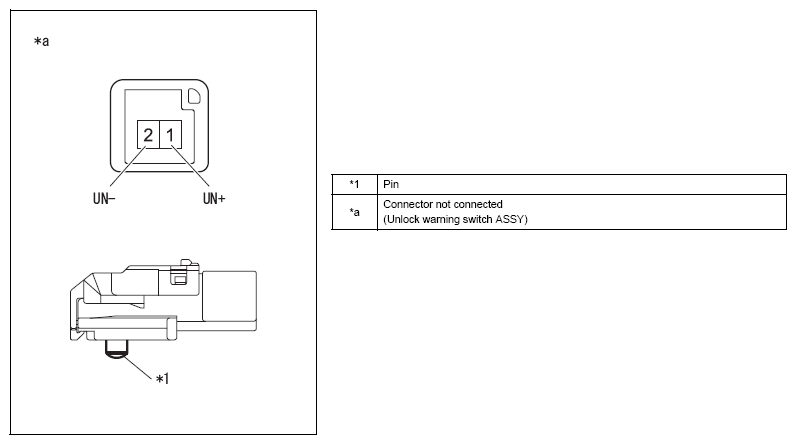

- Inspection of unlock warning switch ASSY
- Resistance check
- Measure the resistance between the terminals.
RESISTANCE
| Inspection terminals |
Inspection conditions |
Standard value |
| 1(UN+) - 2(UN-) |
When pin is pressed in |
Less than 1 Ω |
| 1(UN+) - 2(UN-) |
When pin is not pressed in |
10 kΩ or more |
Courtesy of SUBARU OF AMERICA, INC.
