Front Axle Hub: Removal

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The following procedure is for LH side.
  • Perform the same procedures for the RH and LH side.
  1. Removal of front tire
  2. Removal of front disc brake caliper ASSY LH (Refer to REPLACEMENT  )
  3. Removal of front disc (Refer to DISASSEMBLY )
  4. Disconnection of speed sensor FR LH
    1. Remove the bolt, and disconnect the speed sensor FR LH from the steering knuckle.
      CAUTION:
      • Keep the tip and mounting portion of the speed sensor FR LH free from foreign matter.
      • The speed sensor FR LH is easily damaged. When removing the speed sensor FR LH from the front axle hub & bearing ASSY LH, do not apply excessive force or turn the sensor.

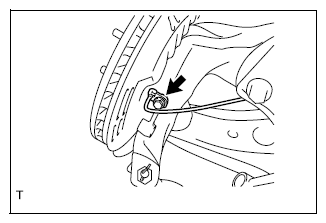

      Fig 1: Locating Speed Sensor FR LH
      G08555151Courtesy of SUBARU OF AMERICA, INC.
  5. Removal of front axle hub & bearing ASSY LH
    1. Remove 4 bolts, and remove the front axle hub & bearing ASSY from the steering knuckle.

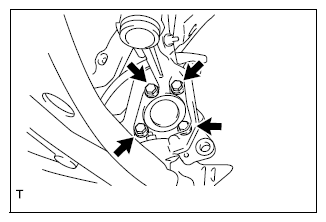

      Fig 2: Locating Front Axle Hub & Bearing Assembly LH Mounting Bolts
      G08555152Courtesy of SUBARU OF AMERICA, INC.
