Light Control Rheostat: Removal

Removal of instrument side panel LH (Refer to DISASSEMBLY )
Removal of the instrument panel under cover sub-assembly No. 1
1. Remove the 2 screws.

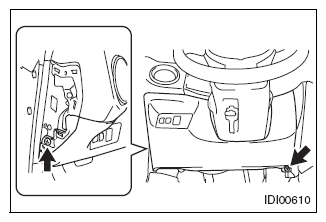

  Fig 1: Locating Instrument Panel Under Cover Sub-Assembly No. 1 Screws
  Courtesy of SUBARU OF AMERICA, INC.
2. Release four claws and four clips, and disconnect the instrument panel under cover sub-assembly No. 1.
3. Disconnect the connectors, and remove the instrument panel under cover sub-assembly No. 1.

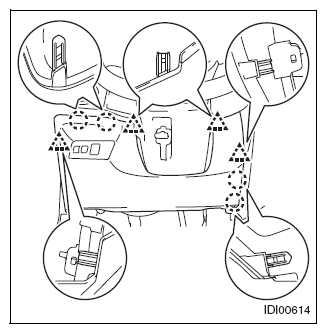

  Fig 2: Locating Instrument Panel Under Cover Sub-Assembly No. 1 Claws And Clips
  Courtesy of SUBARU OF AMERICA, INC.
Removal of the light control rheostat
1. Release two claws and remove the light control rheostat.

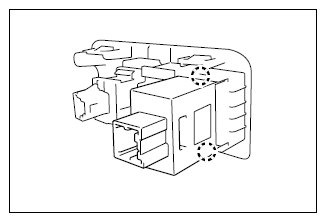

  Fig 3: Locating Light Control Rheostat Claws
  Courtesy of SUBARU OF AMERICA, INC.
