Unit Inspection
WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

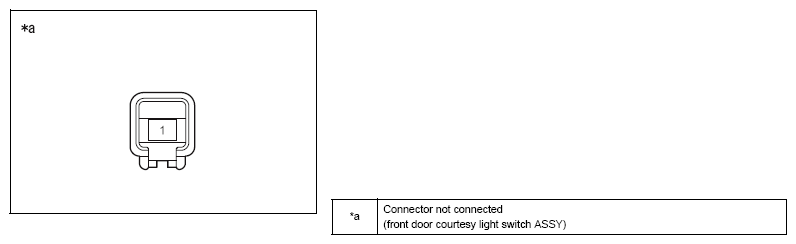

- Inspection of the front door courtesy light switch ASSY
- Measure the resistance when the shaft of the front door courtesy light switch ASSY is operated.
Resistance
| Inspection terminals |
Inspection conditions |
Standard value |
| 1 - Chassis ground |
When the shaft is not pushed in |
Less than 1 Ω |
| 1 - Chassis ground |
When the shaft is pushed in |
10 kΩ or more |
