Front Wiper Motor: Installation

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

Installation of the front wiper motor
1. Using a T30 Torx socket wrench and 2 bolts, install the front wiper motor on the windshield wiper link assembly.
  Standard value: T=7.5N.m {77kgf.cm} {5.5ft.lbf}
Installation of the front wiper crank sub-assembly
1. Connect the front wiper motor connector.
2. Turn the ignition switch to ON.
3. Activate the wiper switch, and stop the front wiper motor in the automatic stop position.
4. Turn the ignition switch to OFF.
5. Disconnect the front wiper motor connector.

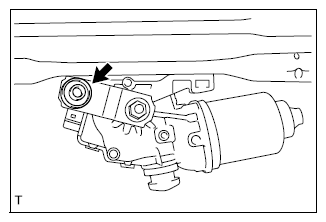

6. Using the nut, temporarily install the front wiper crank sub-assembly on the front wiper motor.
7. Temporarily place the No. 1 rod on the crank arm pivot of the front wiper crank sub-assembly.

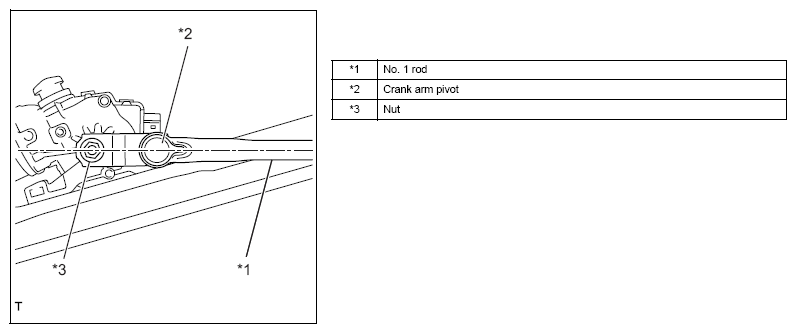

  Fig 1: Aligning Nut Of Front Wiper Crank sub-assembly And Crank Arm Pivot With No. 1 Rod
  Courtesy of SUBARU OF AMERICA, INC.
8. As in the figure, directly align the nut of the front wiper crank sub-assembly and the crank arm pivot with the No. 1 rod.
9. Tighten the nut completely.
  Standard value: T=8.5N.m {87kgf.cm} {6.3ft.lbf}

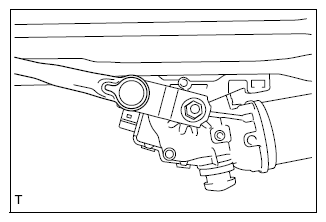

  Fig 2: Locating Crank Arm Pivot Of Front Wiper Crank sub-assembly
  Courtesy of SUBARU OF AMERICA, INC.
10. Apply Multi temp SA grease or the equivalent to the crank arm pivot of the front wiper crank sub-assembly.

  Fig 3: Connecting No. 1 Rod To Crank Arm Pivot Of Front Wiper Crank sub-assembly
  Courtesy of SUBARU OF AMERICA, INC.
11. Connect the No. 1 rod to the crank arm pivot of the front wiper crank sub-assembly.
Installation of the windshield wiper arm cover
1. Fit in the tabs and install the 2 windshield wiper arm covers.

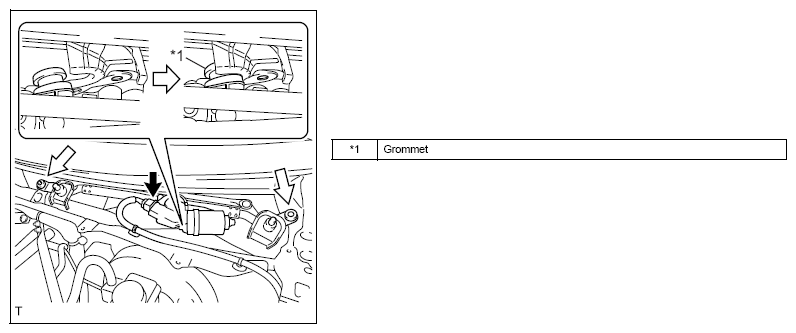

Fig 4: Fitting Grommet Of Front Wiper Motor In Body
Courtesy of SUBARU OF AMERICA, INC.
Installation of the windshield wiper motor & link assembly
1. As shown in the figure, fit the grommet of the front wiper motor in the body, and assemble the windshield wiper motor & link assembly.
2. Using 2 bolts, install the windshield wiper motor & link assembly.
  Standard value: T=6.0N.m {61kgf.cm} {4.4ft.lbf}
3. Connect the connector.
Installation of the cowl ventilator louver
CAUTION: Before installing, check that there is no gravel on the installation sections of the windshield glass and the cowl ventilator louver.
1. Install in the direction of the arrow in the figure, and fit in the 15 guides.
2. Install the 4 cowl top ventilator louver clips on the cowl ventilator louver.
3. Using 3 clips, install the cowl ventilator louver.

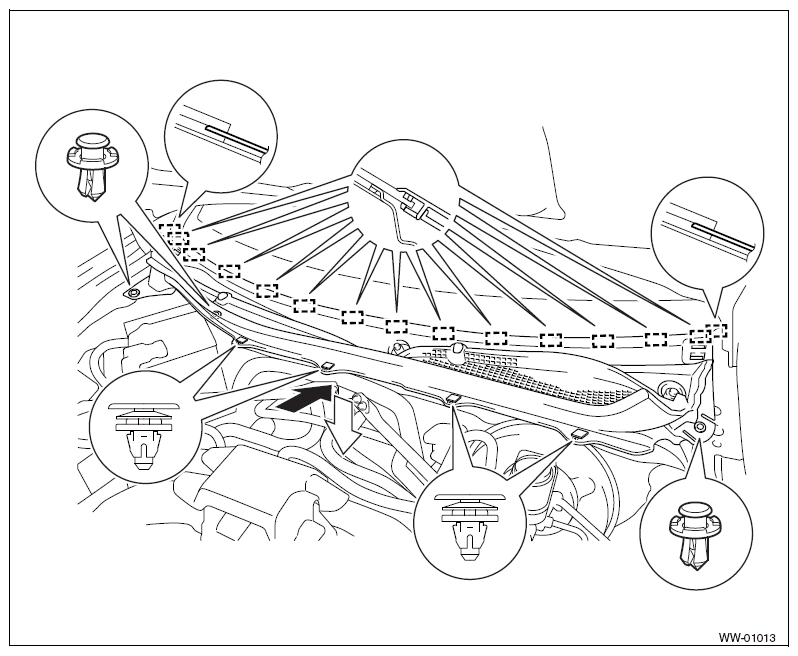

  Fig 5: Installing Cowl Top Ventilator Louver Clips On Cowl Ventilator Louver
  Courtesy of SUBARU OF AMERICA, INC.
Installation of the front fender to cowl side seal RH
1. Fit in the 3 tabs and, using clips, install the front fender to cowl side seal RH.
Installation of the front fender to cowl side seal LH
NOTE: Perform the same procedures as RH side.
Installation of the front wiper arm & blade assembly LH
1. Stop the front wiper motor in the automatic stop position.

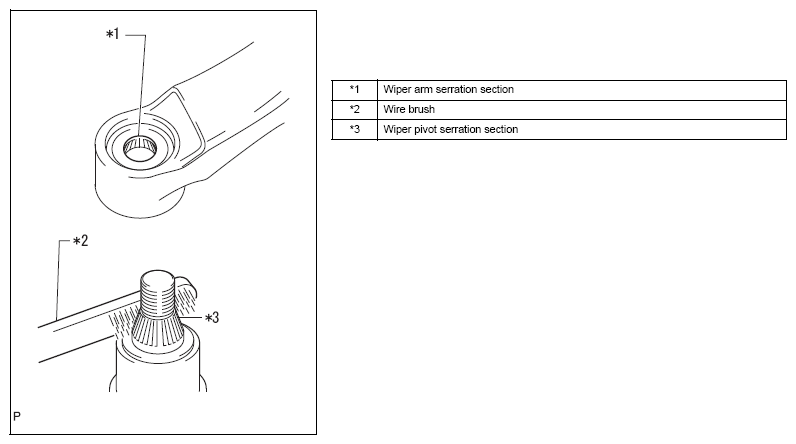

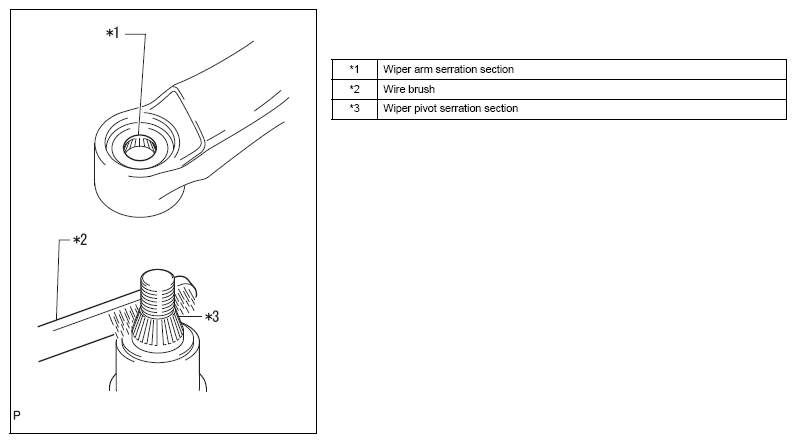

  Fig 6: Cleaning Wiper Arm Serration Section Using Round File
  Courtesy of SUBARU OF AMERICA, INC.
2. During re-assembly:
  1. Use a round file to clean the wiper arm serration section.
3. Using a wire brush, clean the wiper pivot serration section.

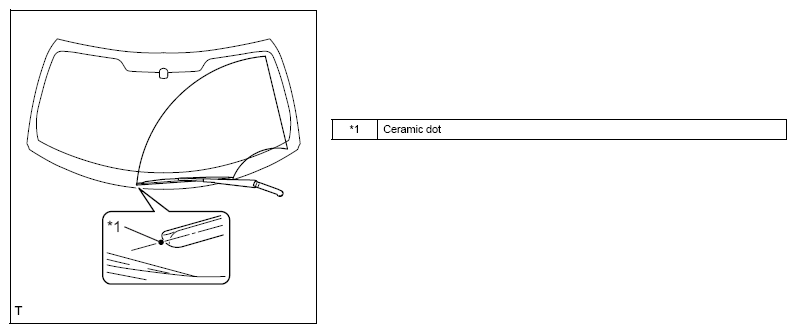

  Fig 7: Installing Front Wiper Arm & Blade assembly LH Matches Position
  Courtesy of SUBARU OF AMERICA, INC.
4. Use a nut to install the front wiper arm & blade assembly LH so that it matches the position in the figure.
  Standard value: T=22N.m {224kgf.cm} {16.2ft.lbf}

  NOTE: While pressing on the arm hinge with your hand, tighten the nut.
Fig 8: Cleaning Wiper Arm Serration Section Using Round File
Courtesy of SUBARU OF AMERICA, INC.
Installation of the front wiper arm & blade assembly RH
1. During re-assembly:
  1. Use a round file to clean the wiper arm serration section.
2. Using a wire brush, clean the wiper pivot serration section.

  Fig 9: Installing Front Wiper Arm & Blade assembly RH Matches Position
  Courtesy of SUBARU OF AMERICA, INC.
3. Use a nut to install the front wiper arm & blade assembly RH so that it matches the position in the figure.
  Standard value: T=22N.m {224kgf.cm} {16.2ft.lbf}

  NOTE: While pressing on the arm hinge with your hand, tighten the nut.
4. While spraying water or washer fluid on the glass, activate the front wipers, and check that the blades wipe properly and don't interfere with the body.

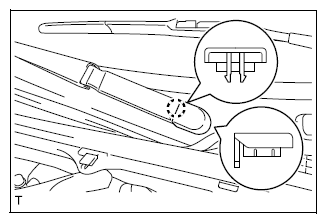

Fig 10: Installing Wiper Arm Head Caps
Courtesy of SUBARU OF AMERICA, INC.
Installation of the wiper arm head caps
1. Fit in the tabs and install the 2 wiper arm head caps.
