Unit Inspection

Inspection of front door lock assembly LH (with motor)

Operation check of door lock

Check the door lock operation when battery voltage is applied to each terminal of the connector.

Criteria

DOOR LOCK OPERATION DESCRIPTION (CRITERIA)

Battery connection	Door lock operation
Battery positive →4(L) Battery negative →1(UL)	LOCK
Battery positive →1(UL) Battery negative →4(L)	UNLOCK

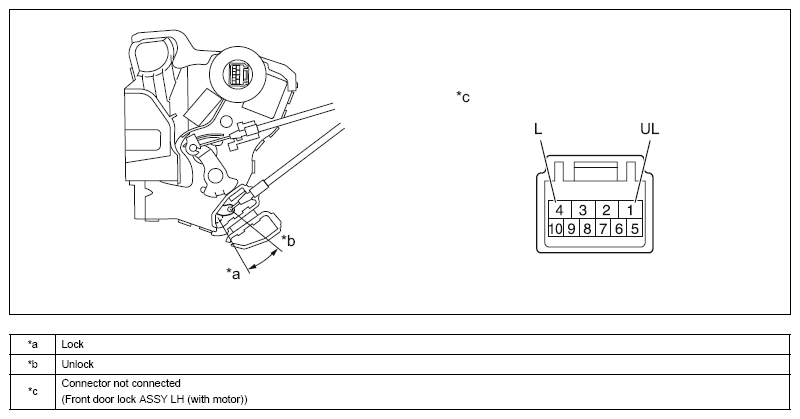

Fig 1: Checking Front Door Lock Assembly LH (With Motor)

Courtesy of SUBARU OF AMERICA, INC.

Inspection of position switch (with smart entry)

Measure the resistance between terminals when the door lock is operated.

Resistance

RESISTANCE REFERENCE

Inspection terminals	Inspection conditions	Standard value
7(LSSR) - 8(E)	LOCK	10 kΩ or more
7(LSSR) - 8(E)	UNLOCK	Less than 1 Ω

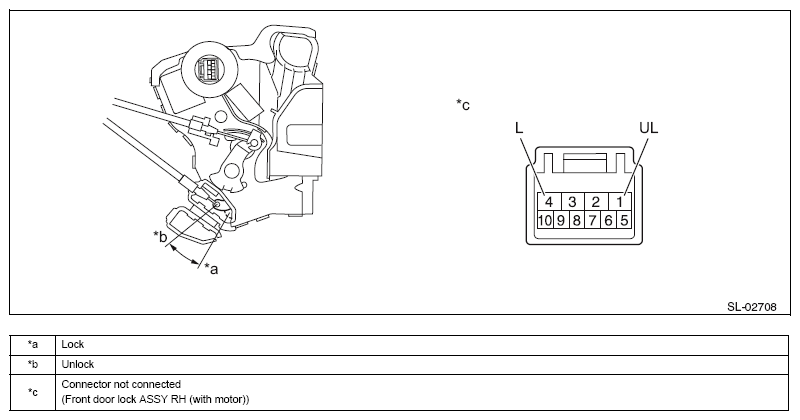

Inspection of front door lock assembly RH (with motor)
