Front Door Lock Assembly: Removal

NOTE: The following procedure is for LH side. Perform the same procedures for the RH side.
  1. Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
  2. Removal of the door armrest cover LH (Refer to ASSEMBLY )
  3. Removal of the front door trim board sub-assembly LH (Refer to ASSEMBLY )
  4. Removal of the front door service hole cover LH (Refer to ASSEMBLY )
  5. Removal of the front door glass sub-assembly LH (Refer to ASSEMBLY )
  6. Removal of the front door frame sub-assembly RR LWR LH (Refer to ASSEMBLY )
  7. Removal of the front door outer handle cover with lock cylinder assembly (driver's door) (Refer to ASSEMBLY )
  8. Removal of the front door lock assembly LH (with motor)
    1. Remove the 3 bolts.
    2. Slide down the front door lock assembly LH (with motor) and remove the front door lock assembly LH (with motor) from the front door lock open rod LH.

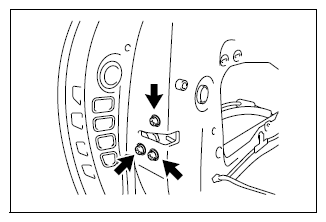

      Fig 1: Locating Front Door Lock Assembly LH Bolts
      G10216176Courtesy of SUBARU OF AMERICA, INC.
