Door Control Transmitter (Without Smart Entry): Removal

  1. Removal of transmitter housing cover
    1. Using a flat tip screwdriver wrapped with protective tape, remove the transmitter housing cover.

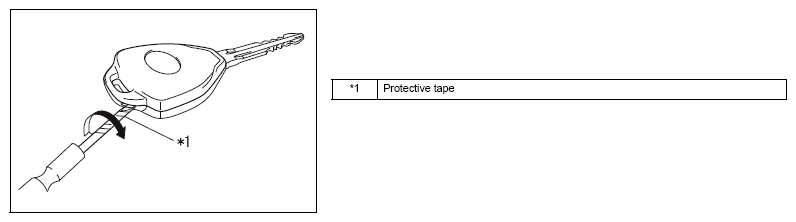

      Fig 1: Removing Transmitter Housing Cover
      G10216167Courtesy of SUBARU OF AMERICA, INC.
      CAUTION: Do not pry the cover excessively.
  2. Removal of door control transmitter module set
    1. Remove the door control transmitter module set from the transmitter housing case.

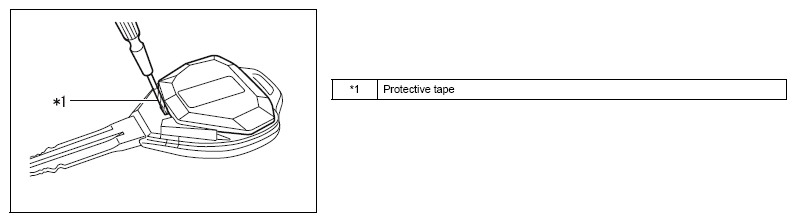

      Fig 2: Removing Door Control Transmitter Module Set
      G10216168Courtesy of SUBARU OF AMERICA, INC.
  3. Removal of door control transmitter gasket
    1. Remove the door control transmitter gasket
  4. Removal of transmitter battery (Refer to REPLACEMENT  )
