Clutch Pedal Switch: Installation

Installation of clutch start switch assembly
1. Install the clutch start switch assembly to the clutch pedal support sub-assembly with the nut.
  Standard value: T=8.0N.m {82kgf.cm} {5.9ft.lbf}
2. Connect the clutch start switch connector.
3. Measure the gap shown in the figure with the clutch pedal fully depressed.

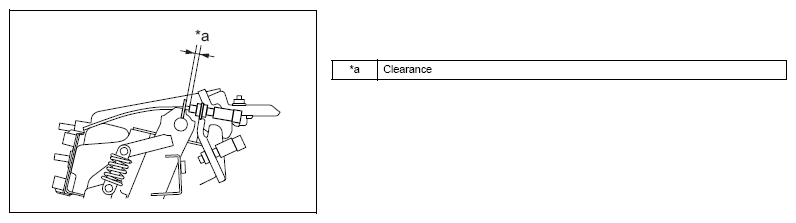

  Fig 1: Measuring Clutch Start Switch Clearance
  Courtesy of SUBARU OF AMERICA, INC.

  Normal clearance: 3.5 to 4.0 mm {0.138 to 0.157 in}
Installation of clutch pedal support sub-assembly (refer to ADJUSTMENT )
Installation of clutch switch assembly
1. Install the clutch switch assembly to the clutch pedal support sub-assembly with the nut.
  Standard value: T=8.0N.m {82kgf.cm} {5.9ft.lbf}
2. Connect the clutch switch connector.
3. Check that a gap is not created when the clutch pedal is not depressed.

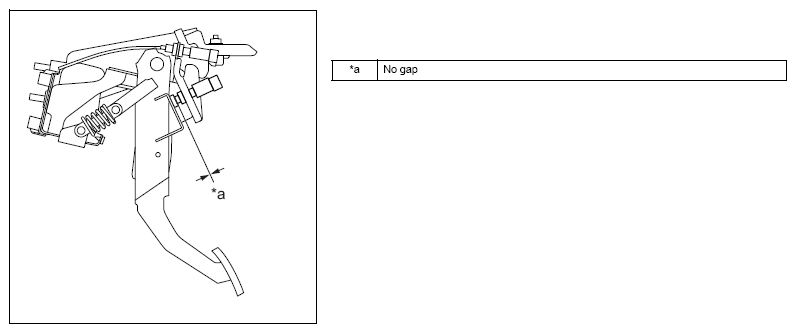

  Fig 2: Checking Clutch Pedal Gap
  Courtesy of SUBARU OF AMERICA, INC.
Installation of instrument panel under cover sub-assembly No. 1 (refer to INSTALLATION )
Installation of instrument side panel LH (refer to INSTALLATION )
Check of clutch start system (refer to CLUTCH SYSTEM )
