Unit Inspection

  1. Inspection of camshaft timing oil control valve assembly
    1. Measure the resistance between the terminals.

      Resistance

      Inspection terminals Inspection conditions Standard value
      1 - 2 20°C {68°F} 6.85 to 7.65Ω

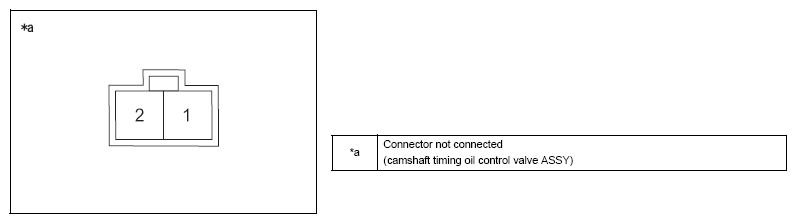

      Fig 1: Camshaft Timing Oil Control Valve Assembly Connector Terminal Identification
      G10213012Courtesy of SUBARU OF AMERICA, INC.
