Trunk Panel: Assembly

  1. Installation of the stay assembly trunk (Refer to INSTALLATION  )
  2. Installation of the rear spoiler (if there is a rear spoiler) (Refer to INSTALLATION )
  3. Installation of the license plate light assembly (installed on the LH side) (Refer to INSTALLATION )
  4. Installation of the license plate light assembly (installed on the RH side)
    NOTE: Install the part in the same manner as LH side.
  5. Installation of the rear ornament emblem (installed on the rear) (Refer to INSTALLATION )
  6. Installation of the trunk opener switch assembly (Refer to INSTALLATION  )
  7. Installation of the trunk garnish sub-assembly outside (Refer to INSTALLATION )
  8. Installation of the cable assembly trunk (Refer to INSTALLATION )
  9. Installation of trunk lock assembly (Refer to INSTALLATION )
  10. Installation of key lock trunk (Refer to INSTALLATION )
  11. Installation of the trunk stoppers
    1. Fit in the 2 tabs and install the 2 new trunk stoppers.

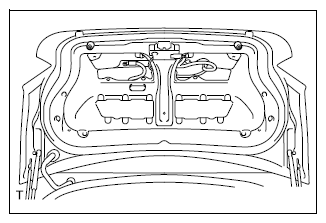

      Fig 1: Locating Trunk Stoppers Tabs
      G10217625Courtesy of SUBARU OF AMERICA, INC.
  12. Installation of trunk cover (with trunk trim)
    1. Using 7 clips, install the trunk cover.

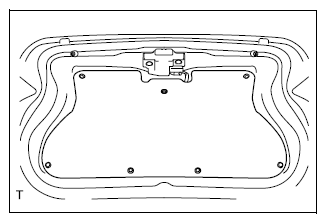

      Fig 2: Locating Trunk Cover Clips
      G10217626Courtesy of SUBARU OF AMERICA, INC.
