Trunk Opening Switch Assembly: Removal

  1. Removal of instrument side panel LH (Refer to DISASSEMBLY )
  2. Removal of instrument panel under cover sub-assembly NO. 1 (Refer to LIGHT CONTROL RHEOSTAT )
  3. Removal of the trunk opening switch assembly
    1. Release the 2 tabs and remove the trunk opening switch assembly.

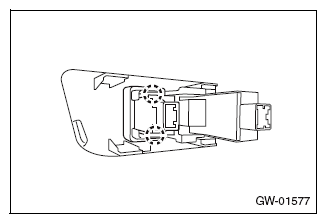

      Fig 1: Removing Trunk Opening Switch Assembly
      G10217636Courtesy of SUBARU OF AMERICA, INC.
