Unit Inspection

  1. Inspection of the trunk opener switch assembly
    1. Inspection of the trunk opener switch assembly
      1. Measure the resistance between the terminals.

        Resistance

        RESISTANCE REFERENCE

        Inspection terminals Inspection conditions Standard value
        2 - 1 When the switch is not in use (OFF) 10 kΩ or more
        2 - 1 When the switch is in use (ON) Less than 1 Ω

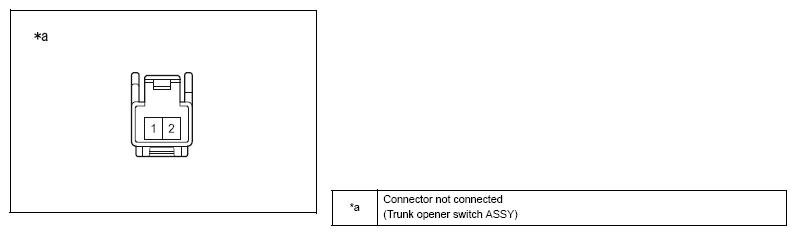

        Fig 1: Trunk Opener Switch Assembly Connector Terminal Identification
        G10217640Courtesy of SUBARU OF AMERICA, INC.
