Exploded View

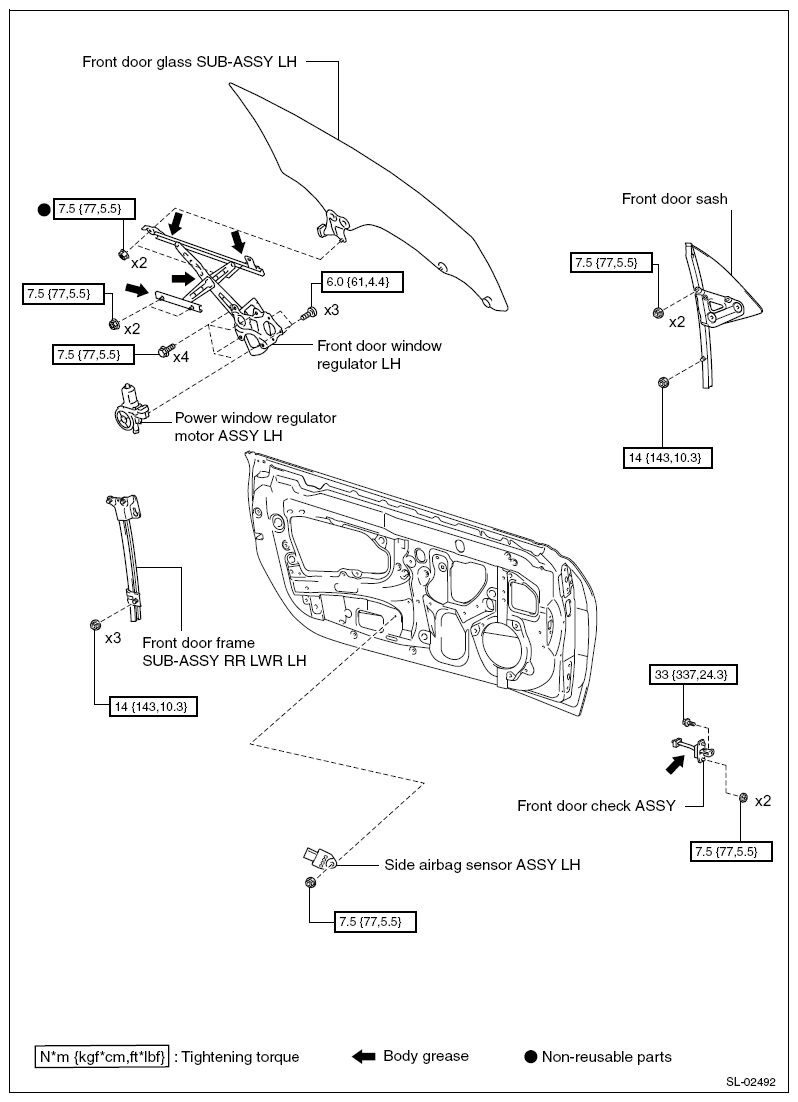

Fig 1: Exploded View Of Front Door (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

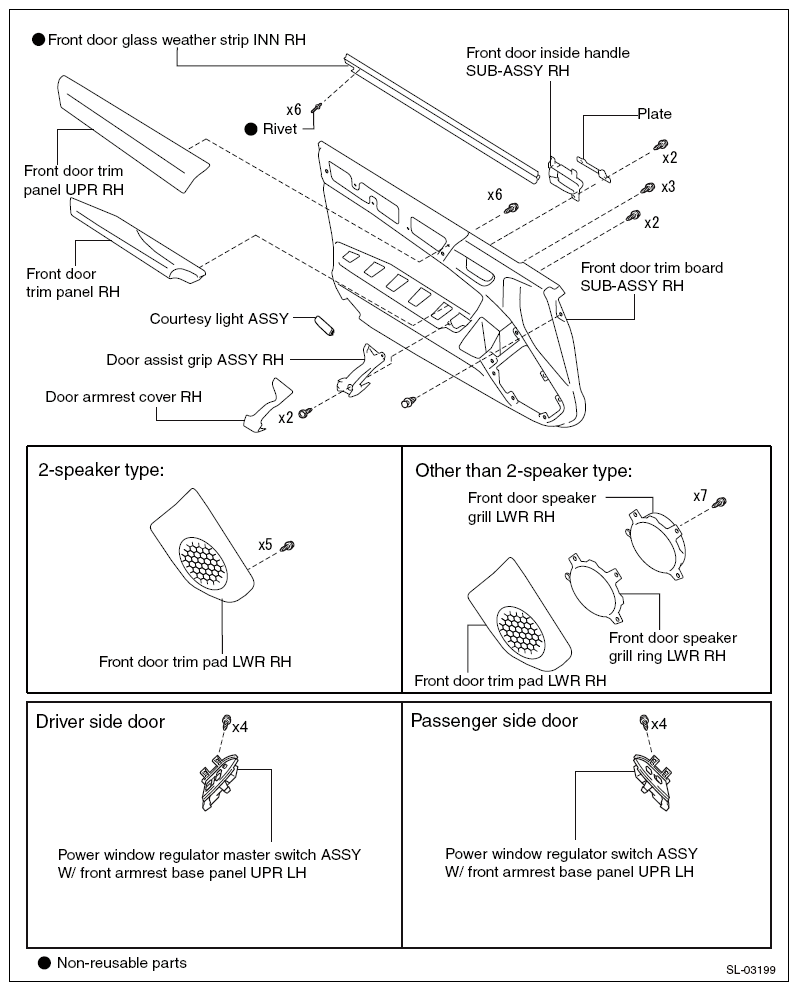

Fig 2: Exploded View Of Front Door (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Exploded View Of Front Door With Torque Specifications (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Exploded View Of Front Door With Torque Specifications (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Exploded View Of Front Door (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
