Front Strut Tower Bar: Removal

  1. Removal of front strut tower bar RH
    1. Remove the bolt and three nuts, and remove the front strut tower bar RH.

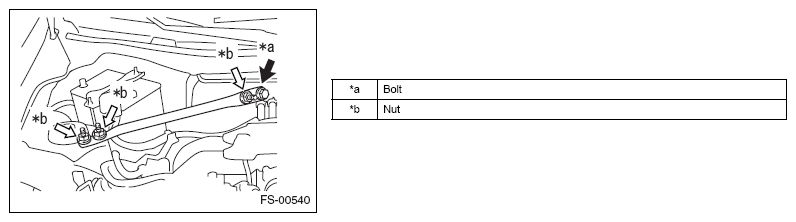

      Fig 1: Removing Front Strut Tower Bar RH
      G10215295Courtesy of SUBARU OF AMERICA, INC.
  2. Removal of front strut tower bar LH
    NOTE: Service the LH side in the same procedure as the RH side.
