Circuit figure

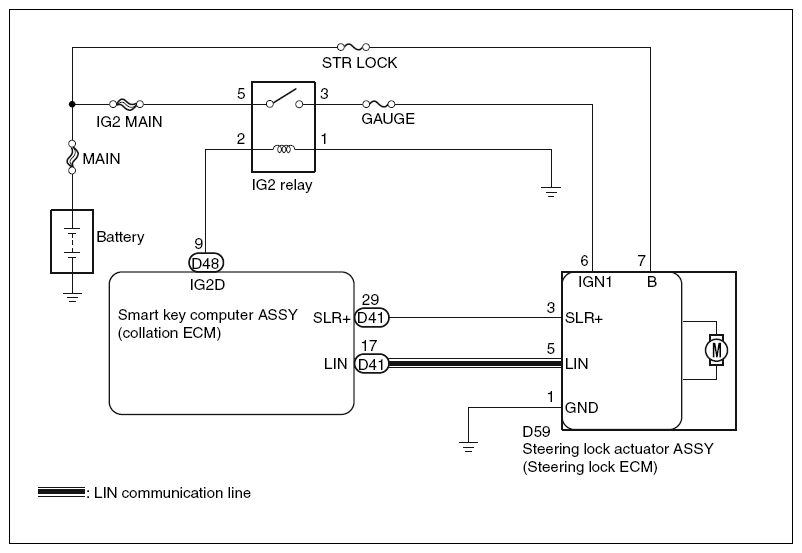

Fig 1: Steering Lock Actuator Assembly (Steering Lock ECU) Circuit Diagram

G10215719

Courtesy of SUBARU OF AMERICA, INC.
