Rear Brake: Components

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

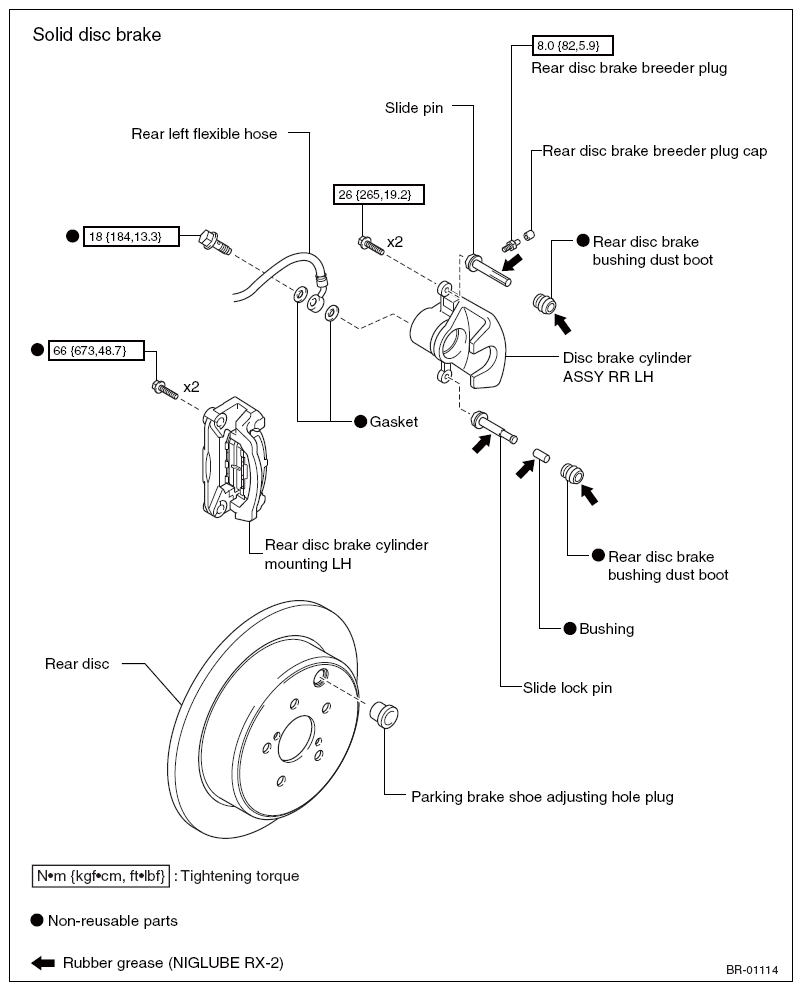

Fig 1: Rear Brake Replacement Components With Torque Specifications (Solid Disc Brake) (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

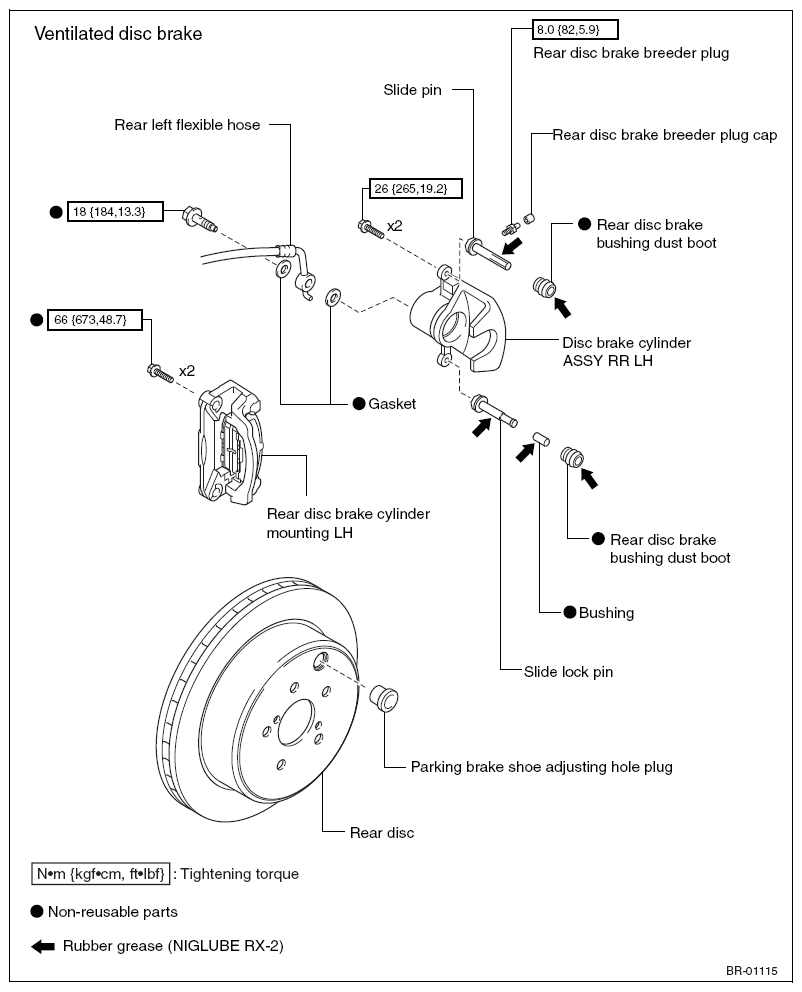

Fig 2: Rear Brake Replacement Components With Torque Specifications (Ventilated Disc Brake) (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

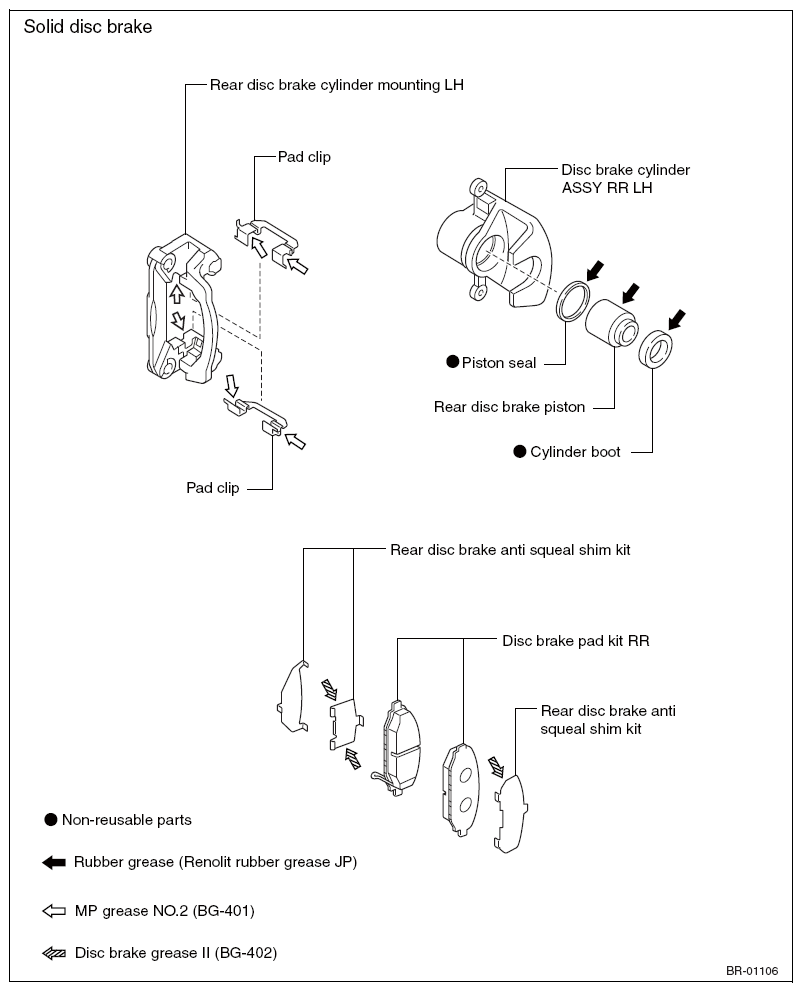

Fig 3: Identifying Rear Brake Components (Solid Disc Brake) (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

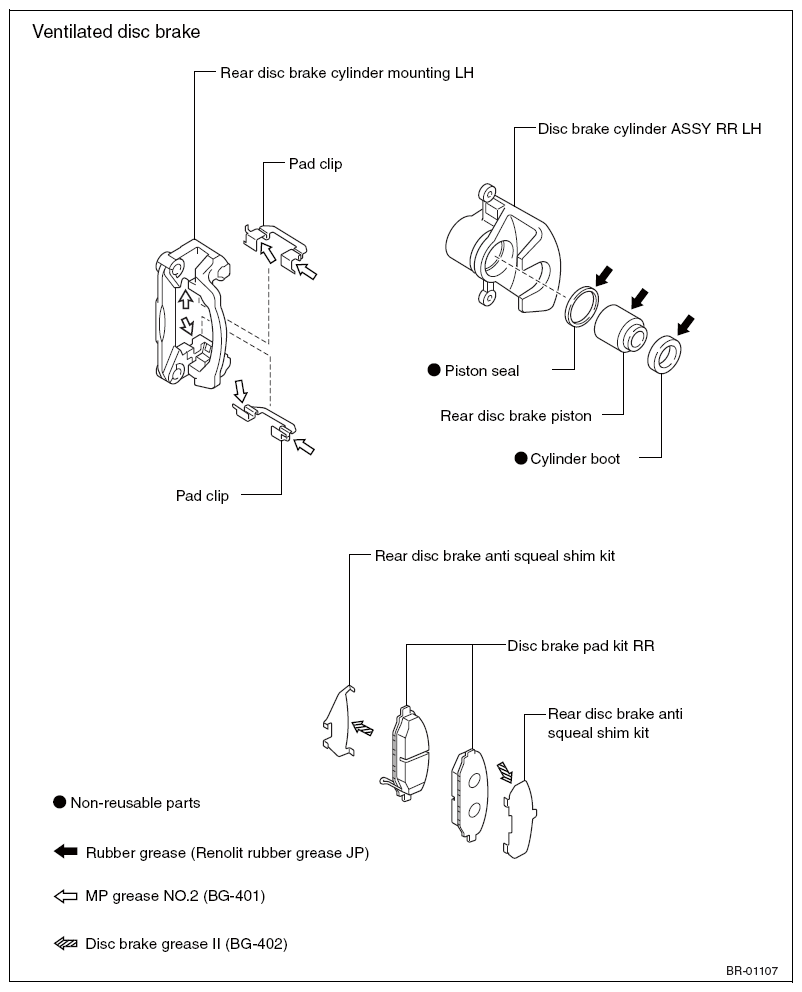

Fig 4: Identifying Rear Brake Components (Ventilated Disc Brake) (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
