Section 40 (Emission Control System): Canister: Removal

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR DIFFERENTIAL CARRIER ASSEMBLY (Refer to REMOVAL )
REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY (Refer to REMOVAL )
REMOVE CANISTER PUMP MODULE

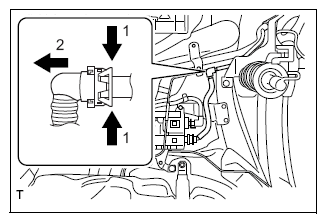

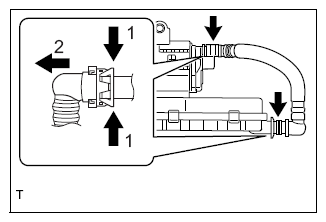

1. Disconnect the drain tube B as indicated by the arrows, in the order shown in the illustration.

  Fig 1: Identifying Drain Tube B Removing Sequence
  Courtesy of SUBARU OF AMERICA, INC.

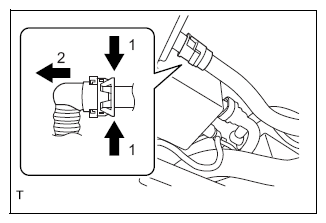

2. Disconnect the drain tube A as indicated by the arrows, in the order shown in the illustration.

  Fig 2: Identifying Drain Tube A Removing Sequence
  Courtesy of SUBARU OF AMERICA, INC.
3. Disconnect the evaporation hose from the fuel filler pipe assembly.

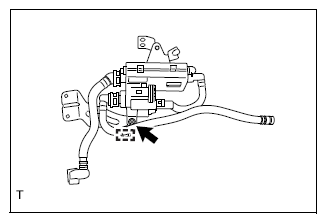

4. Disengage the clip.

  Fig 3: Locating Evaporation Hose Clip
  Courtesy of SUBARU OF AMERICA, INC.

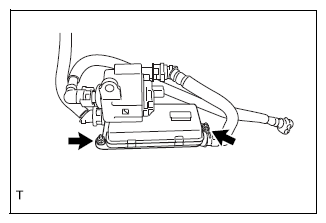

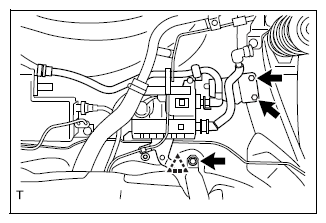

5. Remove the 3 bolts and canister pump module.
6. Disengage the clip.

  Fig 4: Locating Canister Pump Module Bolts
  Courtesy of SUBARU OF AMERICA, INC.
7. Disengage the clamp.

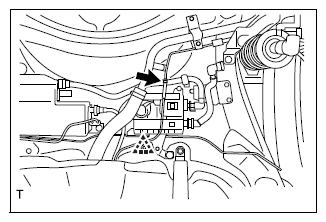

8. Remove the nut and bracket B.

  Fig 5: Locating Canister Mounting Nut
  Courtesy of SUBARU OF AMERICA, INC.

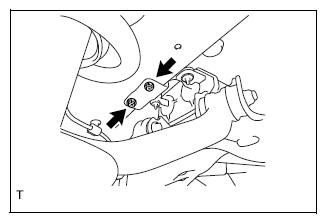

9. Remove the 2 nuts and bracket A.

  Fig 6: Locating Canister Mounting Nuts
  Courtesy of SUBARU OF AMERICA, INC.

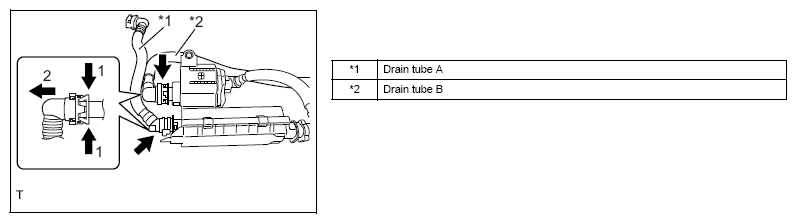

10. Disconnect the drain tube A and drain tube B as indicated by the arrows, in the order shown in the illustration.

  Fig 7: Identifying Drain Tube A And B Disconnecting Sequence
  Courtesy of SUBARU OF AMERICA, INC.

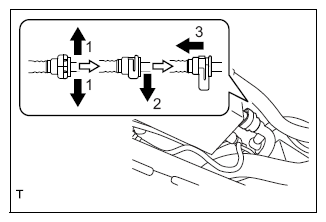

11. Disconnect the 2 quick connector as indicated by the arrows, in the order shown in the illustration, and remove the drain tube C.

  Fig 8: Identifying Quick Connector Disconnecting Sequence
  Courtesy of SUBARU OF AMERICA, INC.
REMOVE CHARCOAL CANISTER ASSEMBLY

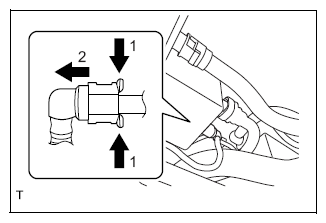

1. Disconnect the fuel tank vent tube as indicated by the arrows, in the order shown in the illustration.

  Fig 9: Identifying Fuel Tank Vent Tube Disconnecting Sequence
  Courtesy of SUBARU OF AMERICA, INC.
2. Disconnect the purge tube as indicated by the arrows, in the order shown in the illustration.

  Fig 10: Identifying Purge Tube Disconnecting Sequence
  Courtesy of SUBARU OF AMERICA, INC.

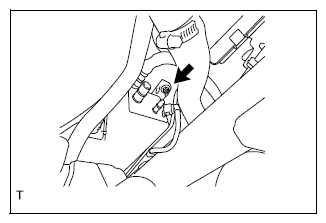

3. Remove the nut.

  Fig 11: Locating Canister Nut
  Courtesy of SUBARU OF AMERICA, INC.
4. Remove the 2 bolts and charcoal canister assembly along with the canister bracket B.

  Fig 12: Locating Canister Bracket Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.

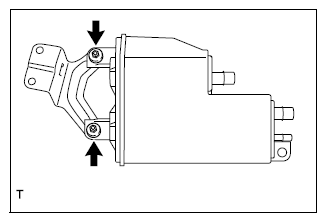

5. Remove the 2 nuts and canister bracket B.

  Fig 13: Locating Canister Bracket Mounting Nuts
  Courtesy of SUBARU OF AMERICA, INC.
