Timing Chain (FA20): Components

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

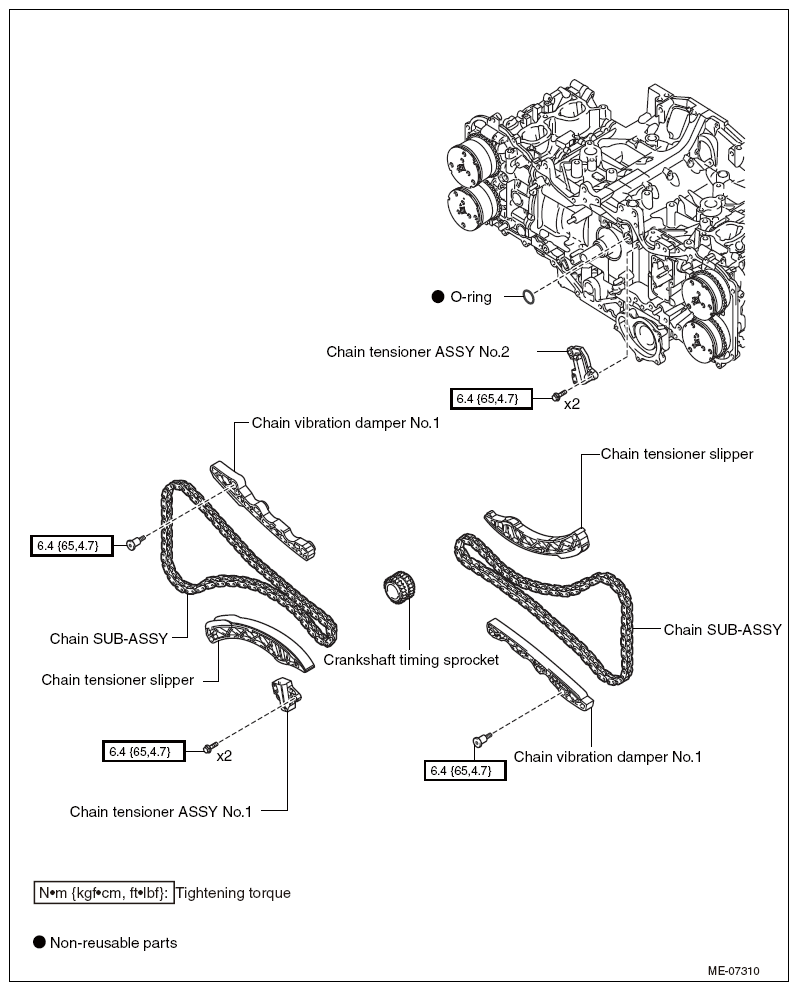

Fig 1: Timing Chain (FA20) Replacement Components With Torque Specifications
G08554095Courtesy of SUBARU OF AMERICA, INC.
