Door Control Receiver: Removal

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
  1. Removal of separate type rear seat cushion ASSY RH (Refer to REMOVAL )
  2. Removal of separate type rear seat cushion ASSY LH
    NOTE: Remove the part in the same manner as RH side.
  3. Removal of front door scuff plate RH (Refer to DISASSEMBLY )
  4. Removal of front door scuff plate LH
    NOTE: Remove the part in the same manner as RH side.
  5. Removal of front door opening trim weather strip RH (Refer to DISASSEMBLY )
  6. Removal of front door opening trim weather strip LH
    NOTE: Remove the part in the same manner as RH side.
  7. Disconnection of trunk trim cover INN RH (Refer to DISASSEMBLY )
  8. Disconnection of trunk trim cover INN LH
    NOTE: Disconnect in the same manner as RH side.
  9. Removal of quarter lower trim RH (Refer to DISASSEMBLY )
  10. Removal of quarter lower trim LH
    NOTE: Remove the part in the same manner as RH side.
  11. Removal of quarter trim lid RH (Refer to DISASSEMBLY )
  12. Removal of quarter trim lid SUB-ASSY LH
    NOTE: Remove the part in the same manner as RH side.
  13. Removal of the rear window side garnish RH (Refer to DISASSEMBLY )
  14. Removal of the rear window side garnish LH
    NOTE: Remove the part in the same manner as RH side.
  15. Removal of package tray trim panel ASSY
    1. Disconnect the connector.

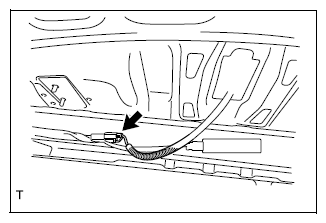

      Fig 1: Locating Package Tray Trim Panel Assembly Connector
      G08557496Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the 4 clips.

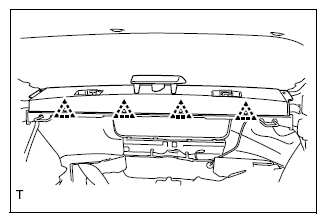

      Fig 2: Identifying Package Tray Trim Panel Assembly Clips
      G08557497Courtesy of SUBARU OF AMERICA, INC.
    3. Release the four clips and remove the package tray trim panel ASSY and center stop light ASSY as a single unit by pulling them toward you.

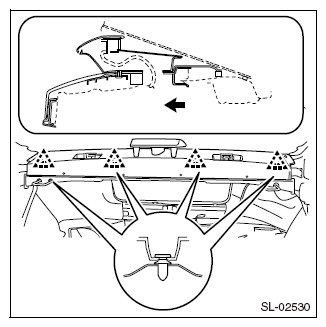

      Fig 3: Removing Package Tray Trim Panel Assembly And Center Stop Light Assembly
      G08557498Courtesy of SUBARU OF AMERICA, INC.
  16. Removal of door control receiver
    1. Disconnect the connector.
    2. Remove the bolt.
    3. Remove the guide and remove the door control receiver.
      CAUTION: Do not drop or apply strong impact to the door control receiver.

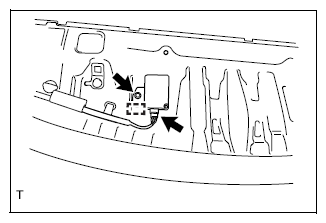

      Fig 4: Locating Door Control Receiver Connector And Bolt
      G08557499Courtesy of SUBARU OF AMERICA, INC.
