Instrument Panel LWR: Components

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Instrument Panel LWR Components (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Identifying Instrument Panel LWR Components (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Identifying Instrument Panel LWR Components (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

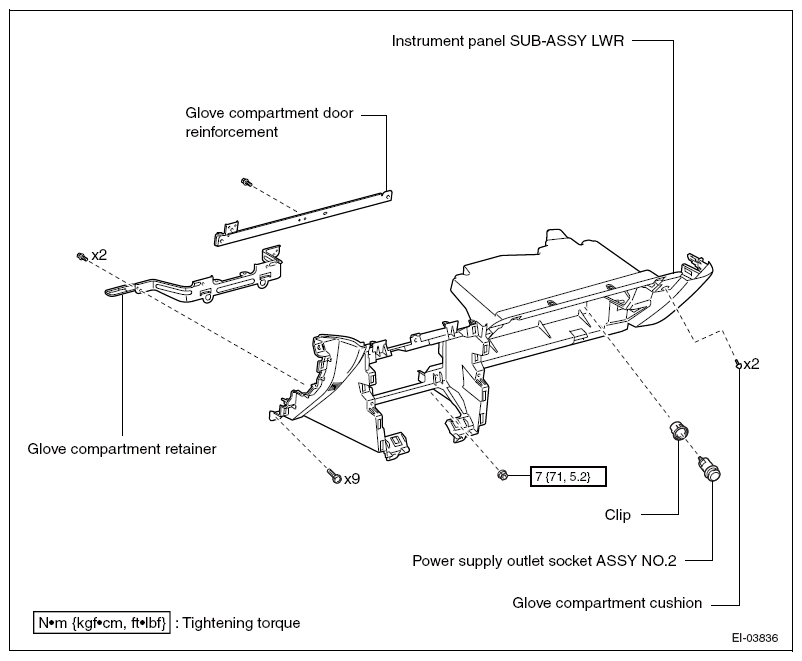

Fig 4: Instrument Panel LWR Replacement Components With Torque Specifications (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
