Light Control Rheostat: Removal

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

Removal of instrument side panel LH (Refer to DISASSEMBLY )
Removal of the instrument panel under cover SUB-ASSY NO. 1
1. Remove the 2 screws.

  Fig 1: Locating Instrument Panel Under Cover Sub-Assembly No. 1 Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
2. Release four claws and four clips, and disconnect the instrument panel under cover SUB-ASSY NO. 1.
3. Disconnect the connector, and remove the instrument panel under cover SUB-ASSY NO. 1

  Fig 2: Identifying Instrument Panel Under Cover Sub-Assembly No. 1 Claw And Clips
  Courtesy of SUBARU OF AMERICA, INC.
Removal of the light control rheostat
1. Release two claws and remove the light control rheostat.

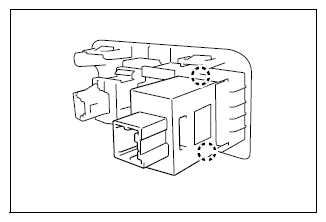

  Fig 3: Identifying Light Control Rheostat Claws
  Courtesy of SUBARU OF AMERICA, INC.
