Instrument Panel Speaker: Removal

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Here we will show the procedure for the RH side. This same RH side procedure can also be used for the LH side.

Remove the instrument panel speaker panel SUB-ASSY No. 1. (Refer to REMOVAL )
Remove the speaker ASSY FR No. 2.
1. Unhook the three tabs and remove the speaker ASSY FR No. 2 from the instrument panel speaker panel SUB-ASSY No. 1.

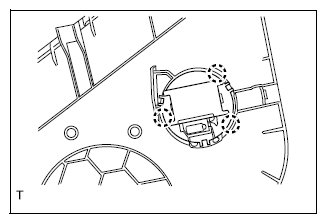

  Fig 1: Identifying Speaker ASSY FR No. 2 Tabs
  Courtesy of SUBARU OF AMERICA, INC.
Remove the speaker ASSY FR No. 3.
CAUTION: Do not touch the speaker cone.
1. Undo the two bolts and remove the speaker ASSY FR No. 3.
2. Disconnect the connector.

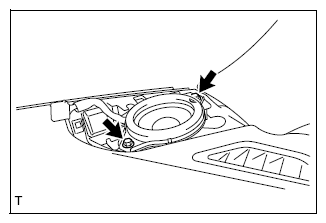

  Fig 2: Identifying Instrument Panel Speaker Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
