Amplifier Antenna: Removal

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
Remove the roof head lining ASSY. (Refer to REMOVAL )
Remove the roof antenna pole SUB-ASSY. (Refer to REMOVAL )
Remove the amplifier antenna ASSY.
1. Disconnect the connector.

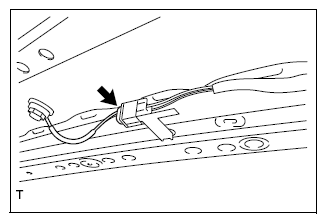

  Fig 1: Identifying Amplifier Antenna ASSY Connector
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the antenna nut.

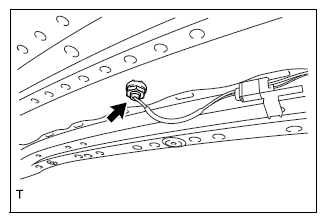

  Fig 2: Identifying Antenna Nut
  Courtesy of SUBARU OF AMERICA, INC.
3. Unhook the two tabs and remove the amplifier antenna ASSY.

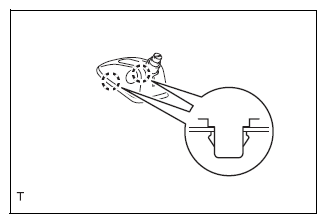

  Fig 3: Identifying Amplifier Antenna ASSY Tabs
  Courtesy of SUBARU OF AMERICA, INC.
Remove the antenna cord SUB-ASSY No. 3.
1. Release the three clamps and remove the antenna cord SUB-ASSY No. 3.

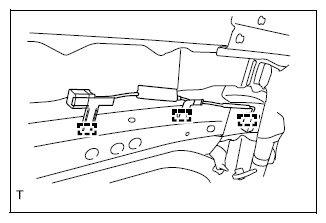

  Fig 4: Identifying Antenna Cord SUB-ASSY No. 3 Clamps
  Courtesy of SUBARU OF AMERICA, INC.
