Stop Light Switch: Removal

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
  1. Removal of the stop light switch ASSY
    1. Disconnect the connector.

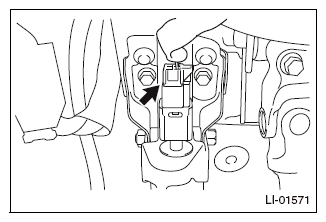

      Fig 1: Stop Light Switch Connector
      G09492404Courtesy of SUBARU OF AMERICA, INC.
    2. Turn in the direction in the figure, and remove the stop light switch ASSY.

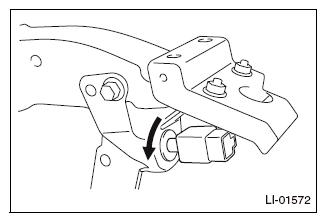

      Fig 2: Rotating Stop Light Switch
      G09492405Courtesy of SUBARU OF AMERICA, INC.
