Rear Combination Light: Installation

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following procedure is for LH side. Perform the same procedures for the RH and LH side.

Installation of the rear combination light ASSY LH
1. Fit in the guide, and temporarily install the rear combination light ASSY LH.
2. Tighten the 4 nuts to install the rear combination light ASSY LH.
  NOTE: The RH side is mirrored.

  Standard value: T=4.5N.m {46kgf.cm} {3.3ft.lbf}

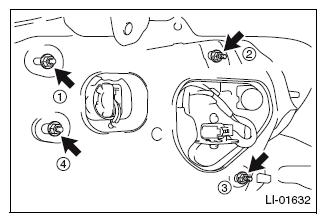

  Fig 1: Identifying Tail Light (Rear Combination Light) Nuts
  Courtesy of SUBARU OF AMERICA, INC.
3. Using 2 grommets, install the rear combination light socket & wiring SUB-ASSY LH.
4. Connect the connector.
Installation of the trunk trim cover INN LH
1. Using 5 clips, install the trunk trim cover INN LH.
Installation of the rear floor finish plate
1. Fit in the 4 tabs, and using 3 clips, install the rear floor finish plate.
Installation of the trunk floor mat
