License Plate Light: Installation

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installation of the license plate light bulb
    1. Install the license plate light bulb on the license plate light socket plug.

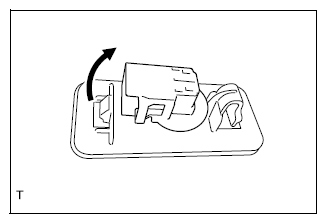

    2. Turn in the direction of the arrow in the figure, and install the license plate light bulb as a unit with the license plate light socket plug.
      Fig 1: Installing License Plate Light Bulb Socket
      G09492379Courtesy of SUBARU OF AMERICA, INC.
  2. Installation of the license plate light ASSY
    1. Fit in the 2 tabs and install the license plate light ASSY.
    2. Connect the connector.
