Unit Inspection
WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
- Inspection of the clock ASSY

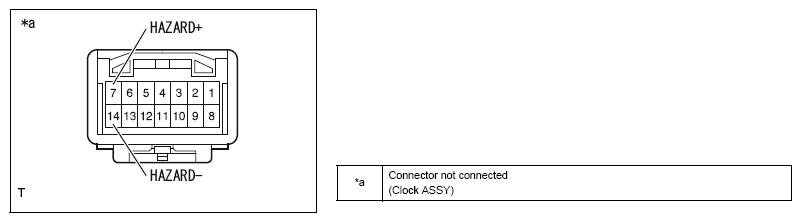

- Measurement of the resistance of the hazard warning signal switch
- Measure the resistance between connector terminals when the hazard warning signal switch is operated.
Resistance
| Inspection terminals (Terminal symbol) |
Inspection conditions |
Standard value |
| 7 (HAZARD+) - 14 (HAZARD-) |
Switch OFF |
10 kΩ or more |
| 7 (HAZARD+) - 14 (HAZARD-) |
Switch ON |
Less than 1 Ω |
Courtesy of SUBARU OF AMERICA, INC.
- Inspection of LED light (night-time illumination)
- Inspect if the LED light turns on when battery voltage is applied to each connector terminal.
Criteria
| Inspection terminals |
Criteria |
Battery positive →9
Battery ground →13 |
Light turns on. |
