Fog Light: Installation

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following procedure is for LH side. Perform the same procedures for the RH and LH side.

Installation of the fog light unit LH
1. Insert the 2 guides, and assemble the fog light unit LH.
2. Using 2 screw, install the fog light unit LH. Standard value: T=2.0N.m {20kgf.cm} {1.5ft.lbf}
3. Connect the connector.

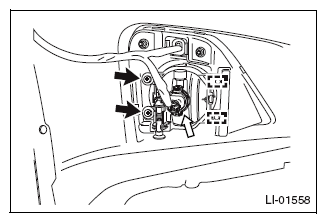

  Fig 1: Locating Fog Light Fasteners
  Courtesy of SUBARU OF AMERICA, INC.
Installation of the front mud guard LH
1. Using 3 clips, install the front mud guard LH.
2. Install the bolt.
  Standard value: T=7.5N.m {77kgf.cm} {5.5ft.lbf}
Adjusting the fog light beams (Refer to ADJUSTMENT )
