Fog Light: Disassembly
WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The following procedure is for LH side. Perform the same procedures for the RH and LH side.
- Removal of the fog light bulb

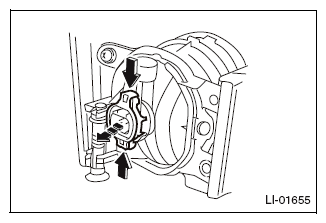

- Push the tabs in the direction of the arrows in the figure, pull out towards the rear, and remove the fog light bulb from the fog light unit LH.CAUTION: Do not touch the glass portion of the bulb.
- Push the tabs in the direction of the arrows in the figure, pull out towards the rear, and remove the fog light bulb from the fog light unit LH.
