Front Sub Sensor: Removal

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The following service operations include the works which may affect the SRS airbag system. Before starting work, always be sure to confirm the precautions related to the SRS airbag system. (Refer to SRS AIRBAG SYSTEM )
NOTE: The following procedure is for LH side. Unless otherwise specified, perform the same procedures for the RH side.
  1. Precautions
    CAUTION: After turning the ignition switch to OFF, you may have to wait for a while before disconnecting the battery terminals. Check appropriate precautions for battery terminal disconnection before proceeding. (Refer to WORKING PRECAUTIONS AND NOTES )
  2. Disconnection of the battery ground terminal
    1. Turn the ignition switch to OFF, disconnect the battery ground terminal, and then wait for 60 seconds before starting the work. (Refer to WORKING PRECAUTIONS AND NOTES )
      WARNING: The air bag and pretensioner system are fitted with a backup power supply. If you start the work within 60 seconds after disconnecting the battery ground terminal, the air bag may be activated.
      CAUTION: To avoid damage to the molding, be sure to fully open the door glasses on both driver's and passenger's sides.
  3. Removal of the front sub sensor LH
    1. Check that the ignition switch is turned to OFF.
    2. Check that the battery ground terminal is disconnected.
      WARNING:
      • After disconnecting the battery ground terminal, do not start the work before waiting for 60 seconds.
      • If the work is performed before disconnecting the battery ground terminal, the airbag may be activated just by the impact applied to the front sub sensor LH itself. Make sure to confirm the auxiliary battery ground terminal is disconnected before starting the work.
    3. Remove the clip and move the washer tank filler.
    4. Remove 2 bolts and 2 guides.
      CAUTION:
      • Do not apply strong impact (such as dropping) to the front sub sensor LH.
      • If strong impact is applied to the front sub sensor LH, replace it with a new one.
      • Do not remove the front sub sensor from the bracket. If the front sub sensor is removed from the bracket, replace it with a new one.

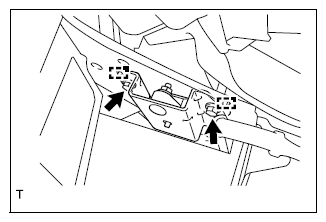

      Fig 1: Locating Front Sub Sensor LH Bolts And Guides
      G08557695Courtesy of SUBARU OF AMERICA, INC.
    5. Disconnect the connector from the front sub sensor LH, and remove the front sub sensor LH.

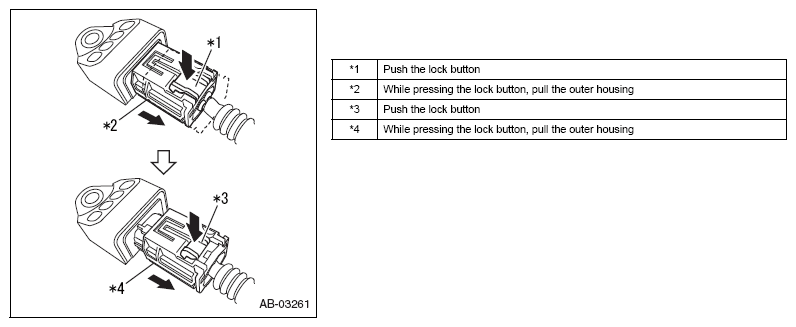

      Fig 2: Disconnecting Connector From Front Sub Sensor LH
      G08557696Courtesy of SUBARU OF AMERICA, INC.
      CAUTION: Do not hold and pull the wiring harness.
