Section 12 (Air Bag System (Service Information))
>>
Front Door Impact Sensor
>>
Exploded View
Exploded View
WARNING:
This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

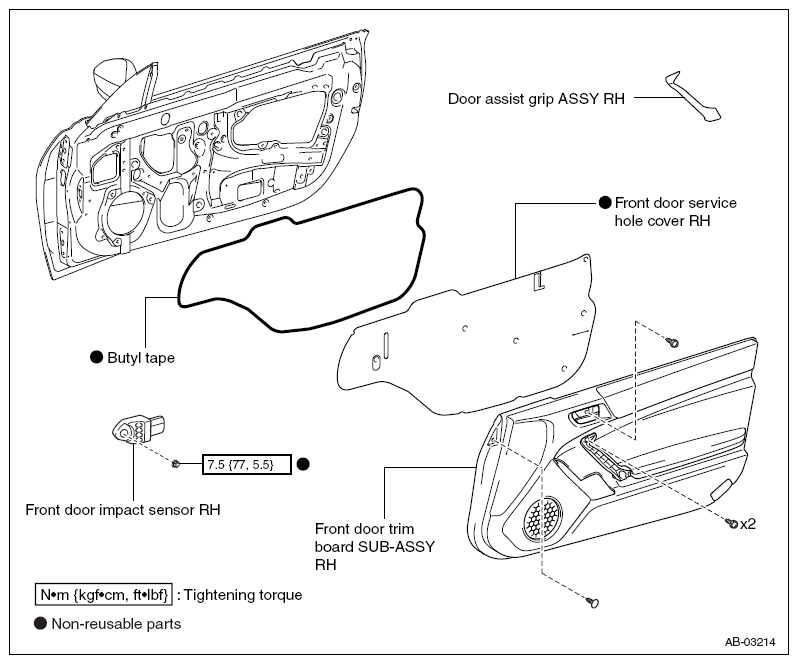

Fig 1: Exploded View Of Front Door Impact Sensor
Courtesy of SUBARU OF AMERICA, INC.
