Airbag Control Module: Installation

WARNING: This page is about a different car, the 2014 Subaru BRZ. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The following service operations include the works which may affect the SRS airbag system. Before starting work, always be sure to confirm the precautions related to the SRS airbag system. (Refer to SRS AIRBAG SYSTEM )

CAUTION:

Do not reuse the bolt and nut.

Always replace with the specified new bolt and nut.

Installation of the airbag control module
1. Before installation, inspect the following items and replace any faulty part with a new one.
  - Control module is deformed.
  - Control module seems to have been wet with water.
  - Control module connector is damaged.
  - Control module mounting bracket is damaged.
2. Check that the ignition switch is turned to OFF.
3. Check that the battery ground terminal is disconnected.
  WARNING:
  - After disconnecting the battery ground terminal, do not start the work before waiting for 60 seconds.
  - If the work is performed before disconnecting the battery ground terminal, the airbag may be activated just by the impact applied to the airbag control module itself. Make sure to confirm the battery ground terminal is disconnected before starting the work.
4. Install the airbag control module with 2 bolts and nuts.
  Standard value: T=25N.m {255kgf.cm} {18.4ft.lbf}
  CAUTION:
  - Do not reuse the airbag control module, if strong impact (such as dropping) is applied to it during the work.
  - When the ignition switch is turned to ON for the first time after replacing the airbag control module, make sure that there is no one inside the vehicle.

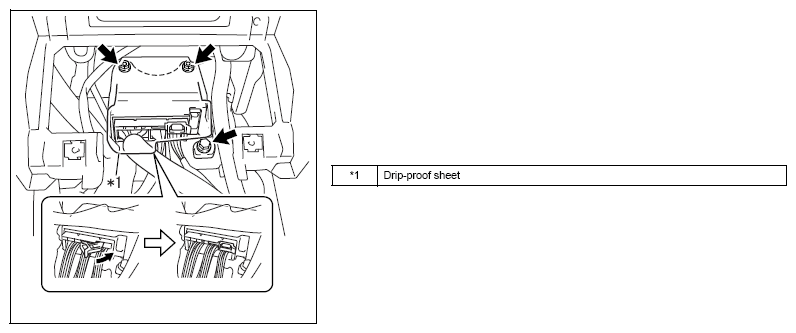

  Fig 1: Locating Airbag Control Module Bolts And Nuts
  Courtesy of SUBARU OF AMERICA, INC.
5. Connect the connector to the airbag control module as shown in the figure, and lock it securely.
  CAUTION: Check that the drip-proof sheet is not being turned over or caught in.
6. Check the installed airbag control module for looseness.
Installation of the air conditioner control ASSY (for automatic air conditioning systems) (Refer to DISASSEMBLY )
Installation of the air conditioner control ASSY (for manual air conditioning systems) (Refer to INSTALLATION )
Installation of the air conditioner control ASSY (without air conditioner) (Refer to INSTALLATION )
Installation of the console box ASSY (Refer to DISASSEMBLY )
Connection of the battery ground terminal
Standard value: T=6.0N.m {61kgf.cm} {4.4ft.lbf}
Inspection of the airbag warning light (Refer to AIRBAG WARNING LIGHT ILLUMINATION PATTERN )
