BRZ Limited, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Cooling Fan
>>
Engine Cooling System
>>
Water Pump (Fa20)
>>
Exploded view
Exploded view

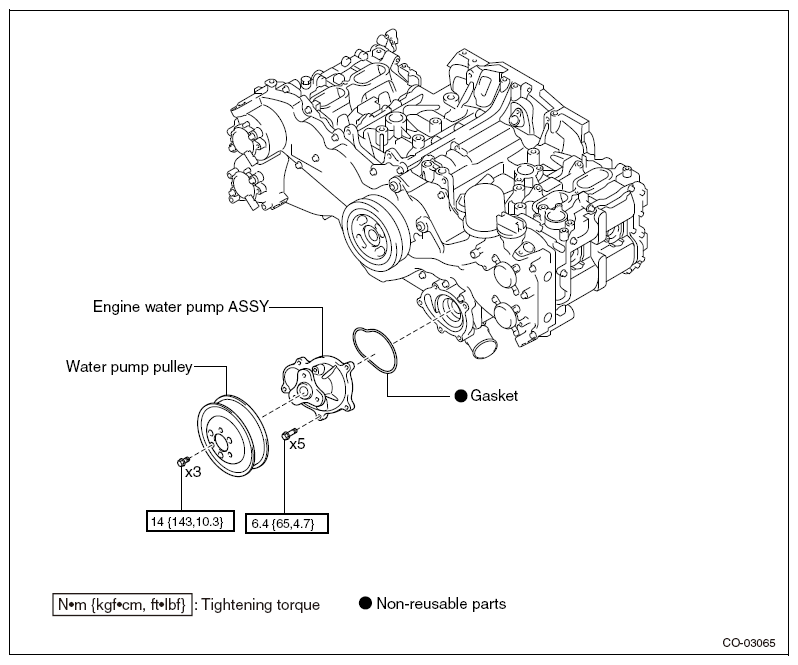

Fig 1: Exploded View Of Water Pump With Torque Specifications (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Exploded View Of Water Pump With Torque Specifications (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
