Subaru
>>
2015
>>
BRZ Limited, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Auxiliary Emission Control Systems
>>
Emission Control System (Fa20)
>>
Circuit Figure
Circuit Figure

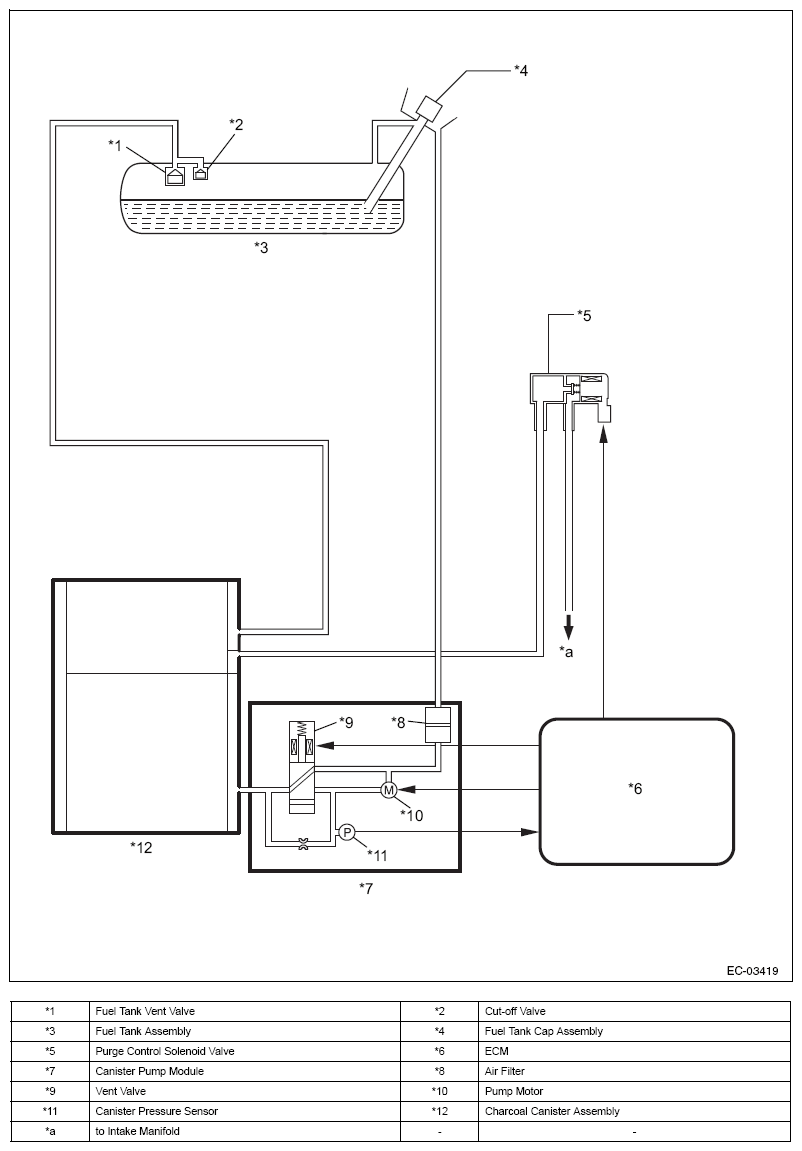

Fig 1: Emission Control System Circuit Diagram (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

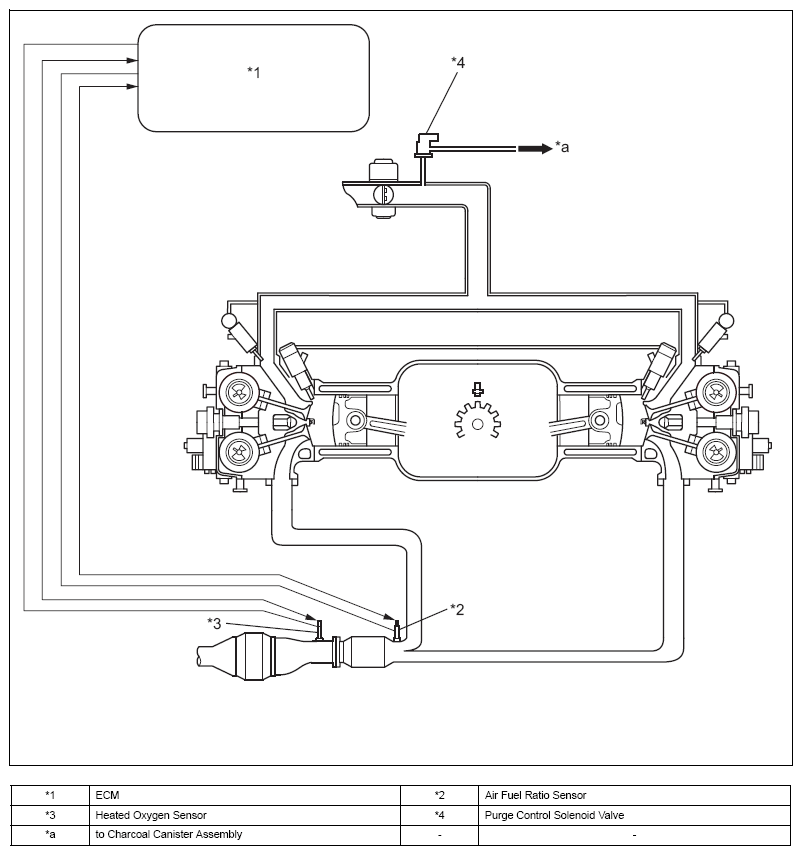

Fig 2: Emission Control System Circuit Diagram (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Emission Control System Circuit Diagram (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
