Cable Assembly Front Hood: Installation

Installation of the cable assembly front hood
1. Engage each clamp as shown in the figure to install the cable assembly front hood.

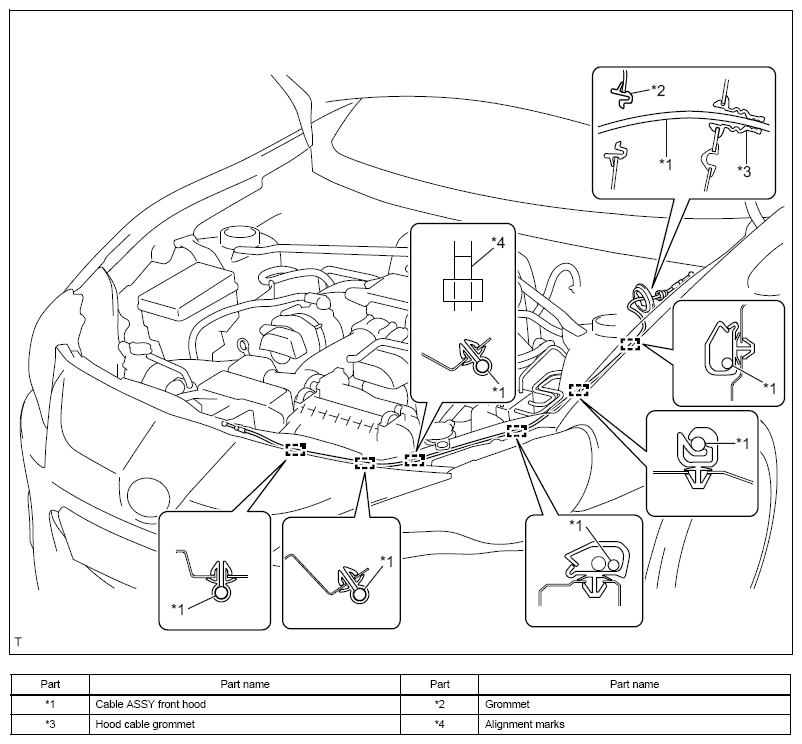

  Fig 1: Locating Cable Assembly Front Hood Grommet And Alignment Marks
  Courtesy of SUBARU OF AMERICA, INC.
Installation of the lock assembly front hood
1. Connect the cable assembly front hood to the hood lock assembly.

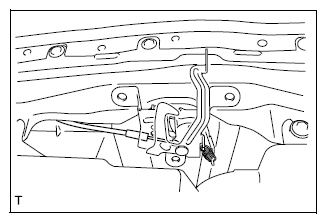

  Fig 2: Connecting Cable Assembly
  Courtesy of SUBARU OF AMERICA, INC.
2. Install the lock assembly front hood with the 3 bolts in the order shown in the figure.
  Standard value: T=33N.m {336kgf.cm} {24.3 ft.lbf}

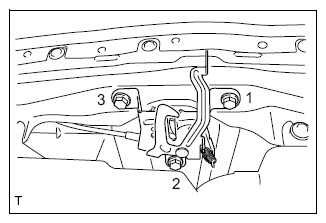

  Fig 3: Lock Assembly Front Hood Bolt Tightening Sequence
  Courtesy of SUBARU OF AMERICA, INC.
Installation of the air cleaner case sub-assembly (Refer to CHAMBER (FA20) )
Installation of the pull handle assembly
1. Connect the cable assembly front hood to the pull handle assembly.
2. Using the bolt, install the pull handle assembly.
  Standard value: T=7.5N.m {77kgf.cm} {5.5ft.lbf}
Installation of the cowl side trim board RH (Refer to INSTALLATION )
Installation of the front door scuff plate RH (Refer to INSTALLATION )
