Entertainment System: Microphone: Removal

Disconnection of the battery ground terminal (Refer to WORKING PRECAUTIONS AND NOTES )
Remove the roof head lining ASSY. (Refer to REMOVAL )
Remove the microphone ASSY.
1. Disconnect the connector.

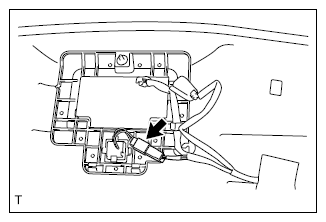

  Fig 1: Locating Microphone ASSY Connector
  Courtesy of SUBARU OF AMERICA, INC.
2. Unhook the two tabs and remove the microphone ASSY.

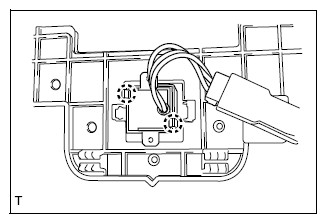

  Fig 2: Identifying Microphone ASSY Tabs
  Courtesy of SUBARU OF AMERICA, INC.
Remove the microphone cover.
1. Unhook the two tabs and remove the microphone cover.

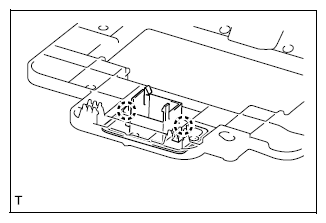

  Fig 3: Identifying Microphone Cover Tabs
  Courtesy of SUBARU OF AMERICA, INC.
