Cruise Control Main Switch: Inspection

  1. Inspect Cruise Control Main Switch Assembly
    1. Measure the resistance according to the value(s) in the table below.

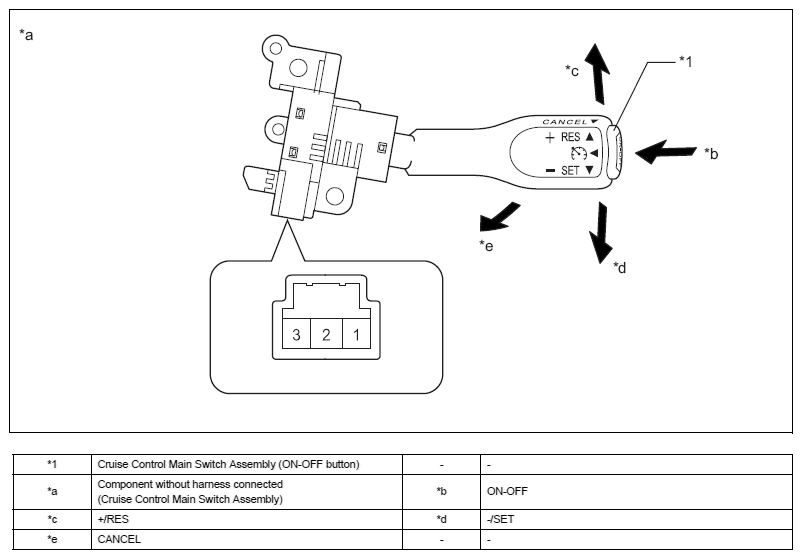

      Fig 1: Inspecting Cruise Control Main Switch Assembly
      G10214160Courtesy of SUBARU OF AMERICA, INC.

      Standard Resistance

      STANDARD RESISTANCE SPECIFICATION

      Tester Connection Switch Condition Specified Condition
      1 - 3 All switch released 1 M Ωor higher
      Cruise control Main switch Assembly (ON-OFF button) pushed Below 1 Ω
      +/RES switch ON 235 to 245 Ω
      -/SET switch ON 617 to 643 Ω
      CANCEL switch ON 1509 to 1571 Ω
