Control Module

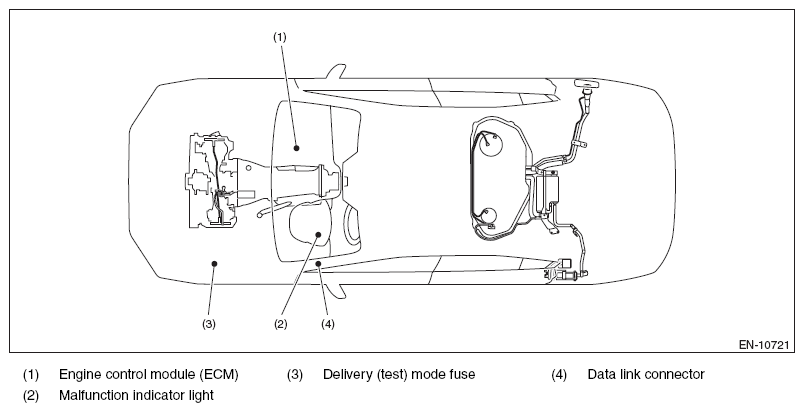

Fig 1: Electrical Components Location - Control Module (1 Of 2)
G09487414Courtesy of SUBARU OF AMERICA, INC.

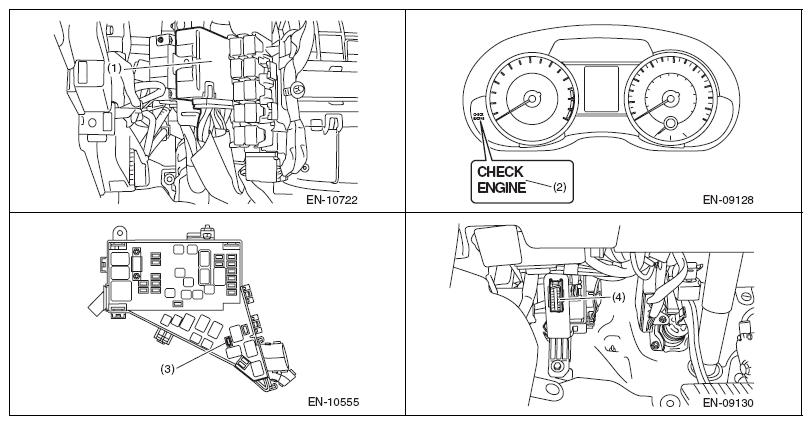

Fig 2: Electrical Components Location - Control Module (2 Of 2)
G09487415Courtesy of SUBARU OF AMERICA, INC.
